Engine Compartment

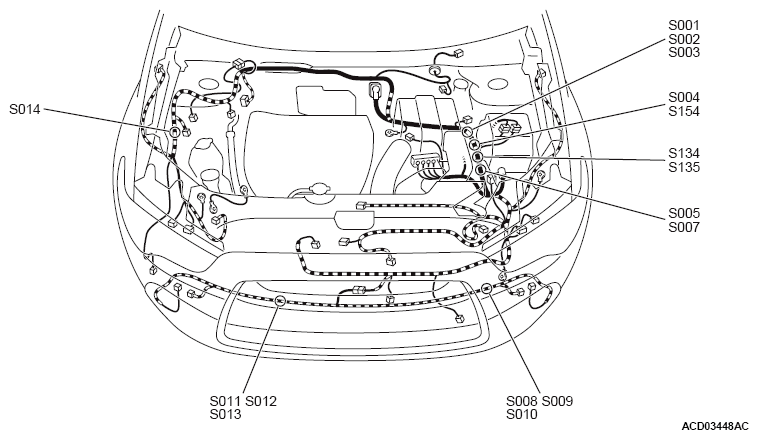

Fig 1: Engine Compartment Wiring Harness Diagram
G10226629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
