Removal And Installation: Notes

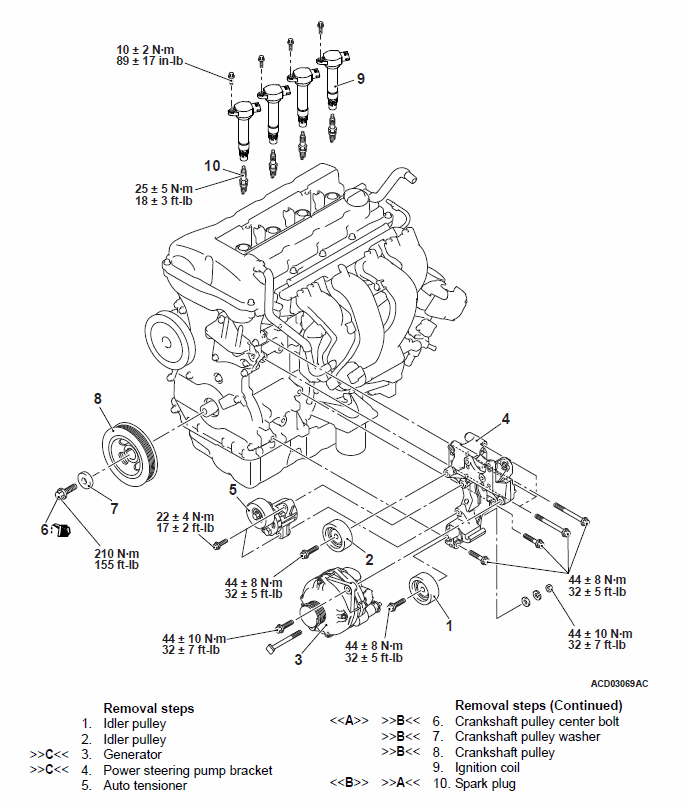

Fig 1: Generator And Ignition System Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

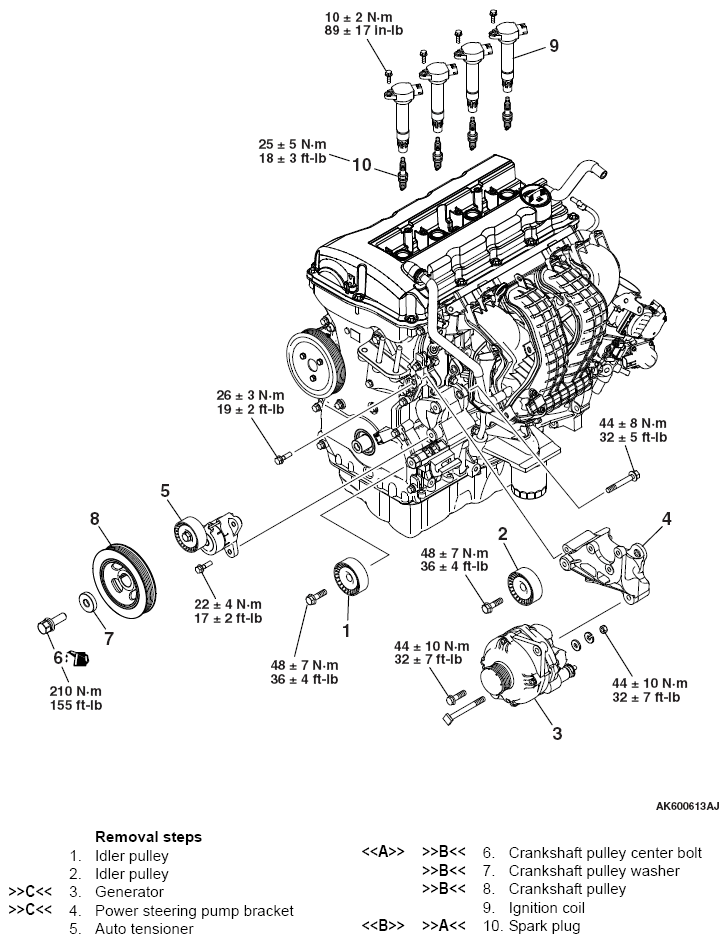

Fig 2: Generator And Ignition System Components With Torque Specifications (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991883: Flywheel Stopper
• MB991398: Spark plug wrench
