Engine Overhaul (2.4L Engine) - Lancer
›
Throttle Body And EGR System
›
Removal And Installation
›
Notes
Removal And Installation: Notes

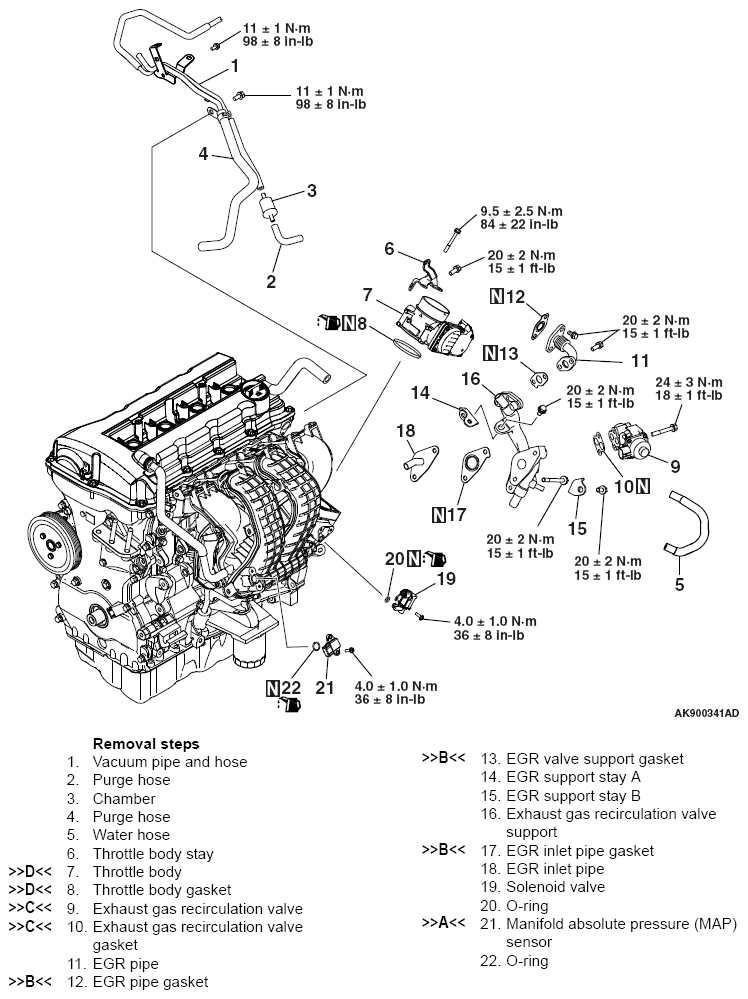

Fig 1: Throttle Body And EGR System Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
