Removal And Installation
›
Notes
Removal And Installation: Notes

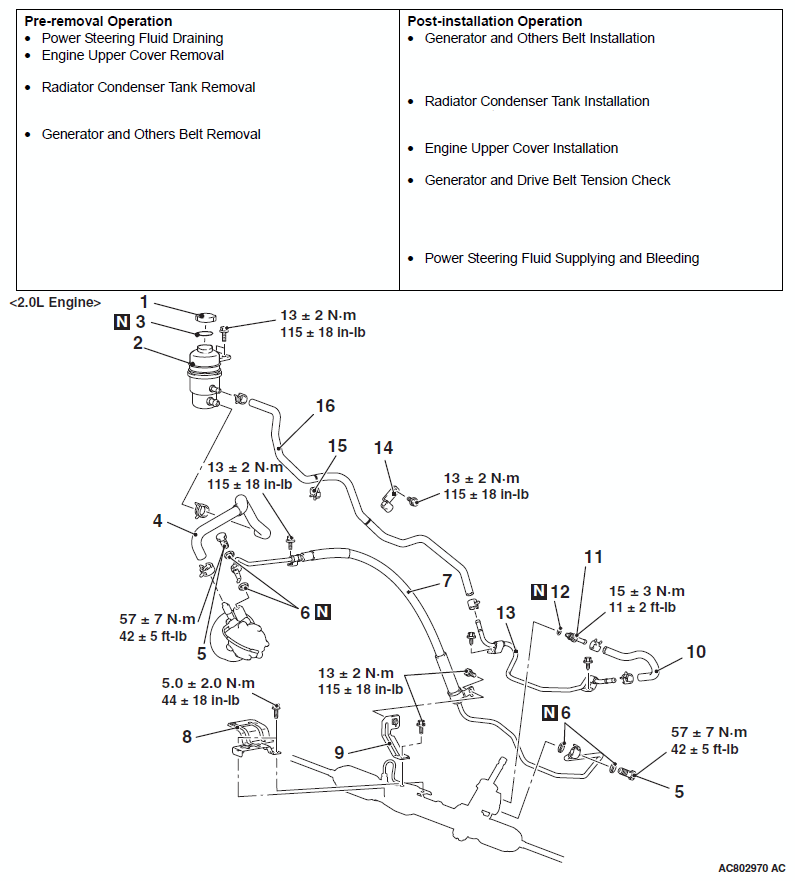

Fig 1: Removing/Installing Power Steering Hoses Components With Torque Specifications (2.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

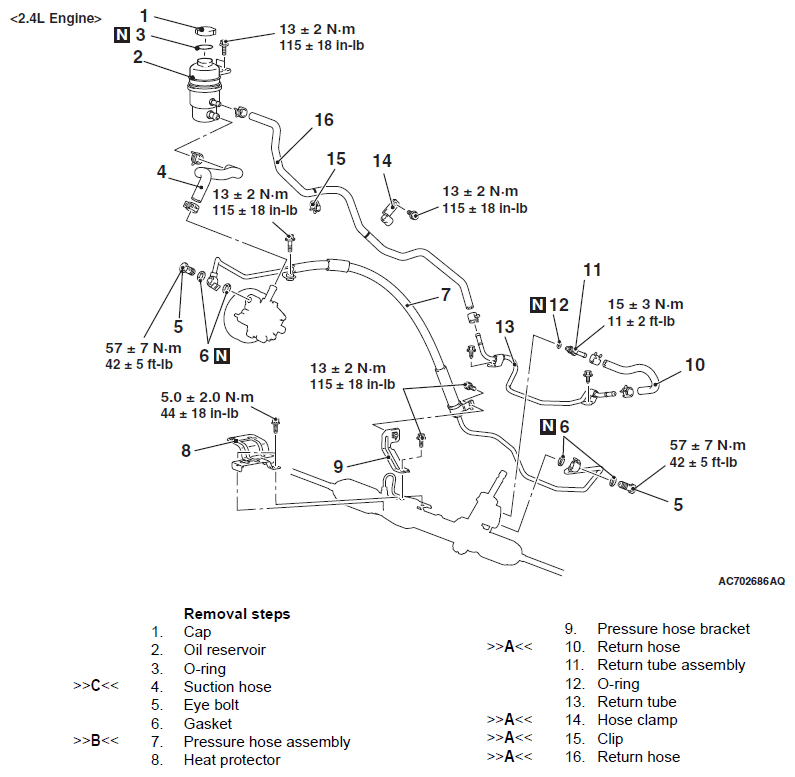

Fig 2: Removing/Installing Power Steering Hoses Components With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
