Disassembly And Assembly: Notes

NOTE: For additional service information, refer to TSB .

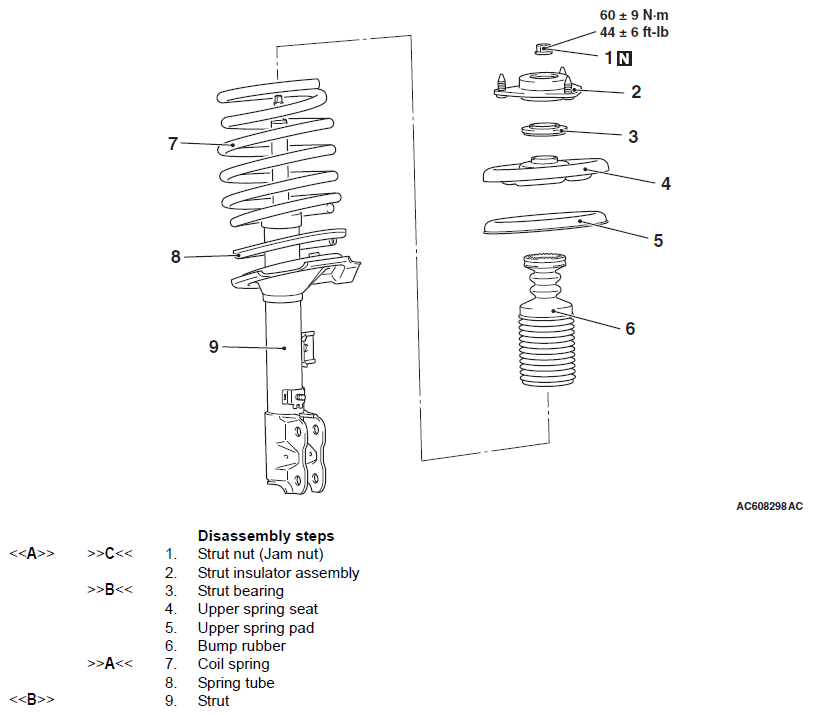

Fig 1: Disassembled And Assembled View Of Suspension With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
