Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Continuously Variable Transaxle On-Vehicle Service
›
Sensors
›
Removal And Installation
Removal And Installation

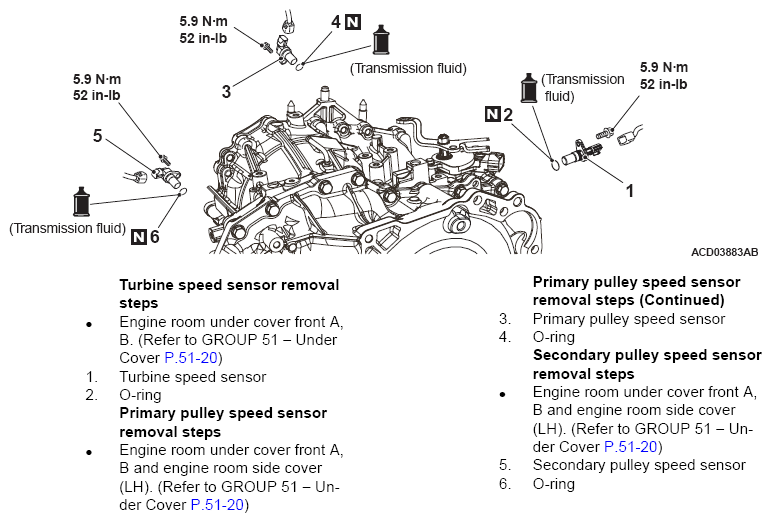

Fig 1: Removing/Installing Sensors Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
