Removal And Installation: Notes

Pre-removal operation  Engine Room Under Cover Front A, B Removal (Refer to REMOVAL AND INSTALLATION ). Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE  ).

Post-installation operation  Engine Room Under Cover Front A, B Installation (Refer to REMOVAL AND INSTALLATION ). Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE  ).

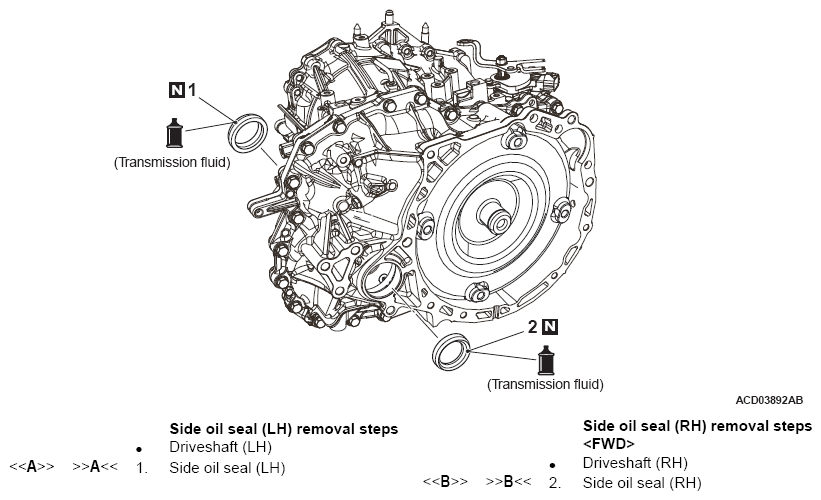

Fig 1: Oil Seal Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
