Seatback Frame Assembly Installation

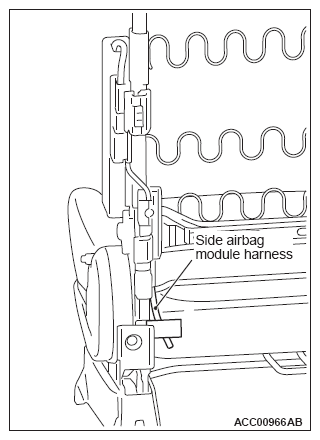

To route the side airbag module wiring harness under the seat cushion, guide it through the fastener on the rear end of the seat cushion cover.

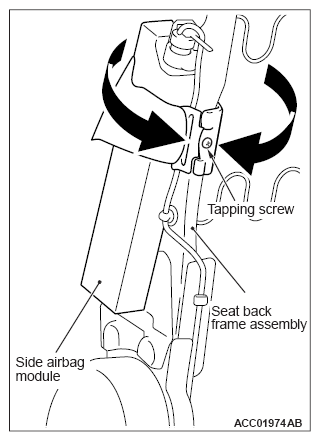

When the side airbag module is fitted in the seatback frame assembly, wrap reinforcement fabric of the seatback cover around the side airbag module and hook the assembly to the seatback frame assembly as shown, and then tighten the tapping screw securely.
