Removal And Installation: Notes

Pre-removal and Post-installation Operation  Rear wiper blade and arm assembly removal and installation (Refer to REAR WIPER AND WASHER .) Liftgate trim removal and installation (Refer to LIFTGATE TRIM .)

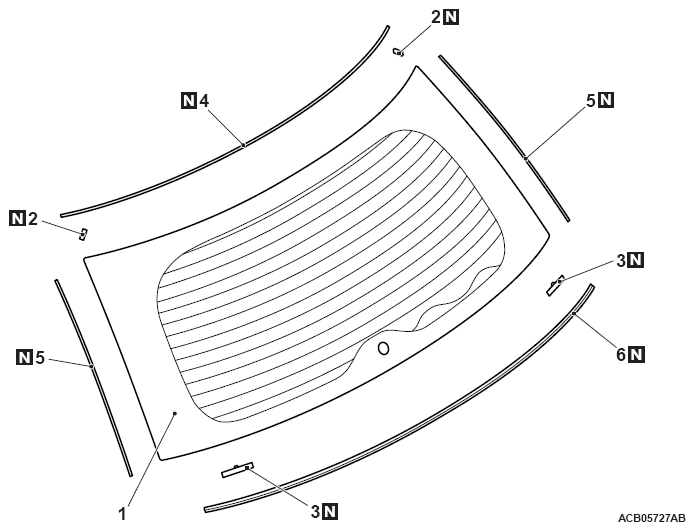

Fig 1: Removing/Installing Liftgate Window Glass Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

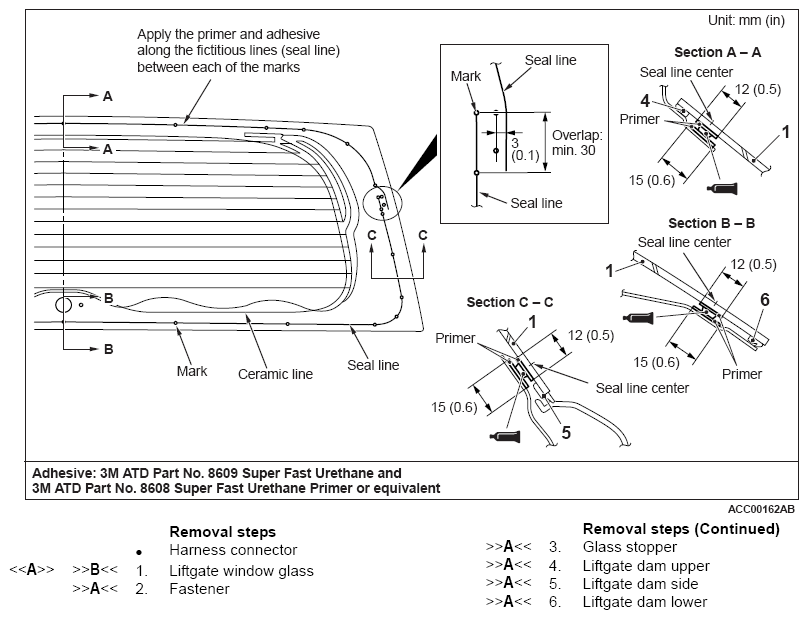

Fig 2: Identifying Window Glass Adhesive Applying Area

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
