System Diagram

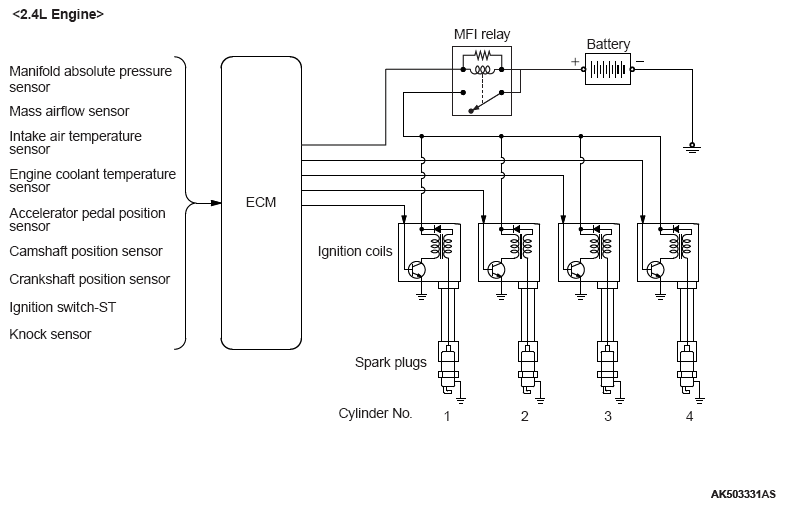

Fig 1: Engine Electrical Ignition System Circuit Diagram
G10224380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

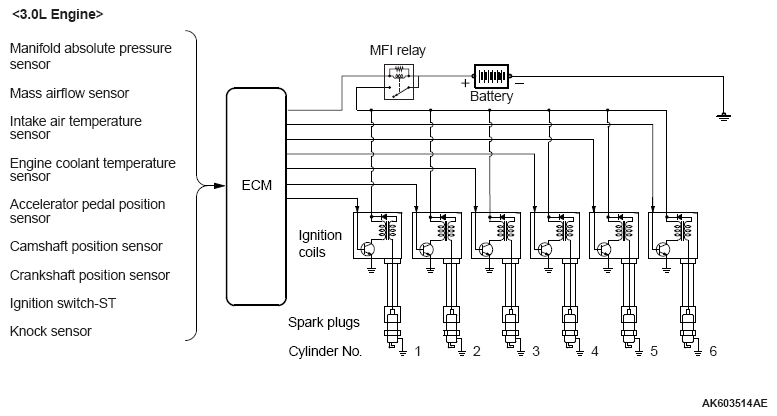

Fig 2: Engine Electrical Ignition System Circuit Diagram
G10224381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
