Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

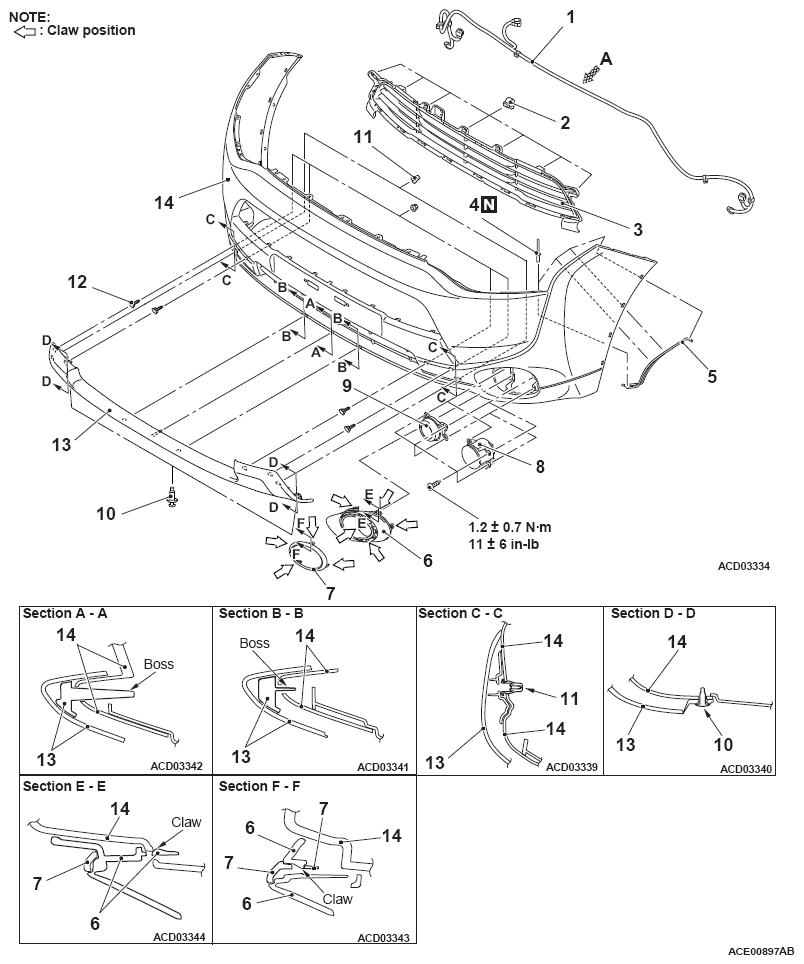

Fig 1: Disassembling/Assembling Front Bumper Assembly Components With Torque Specification (1 Of 2)
G10224868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

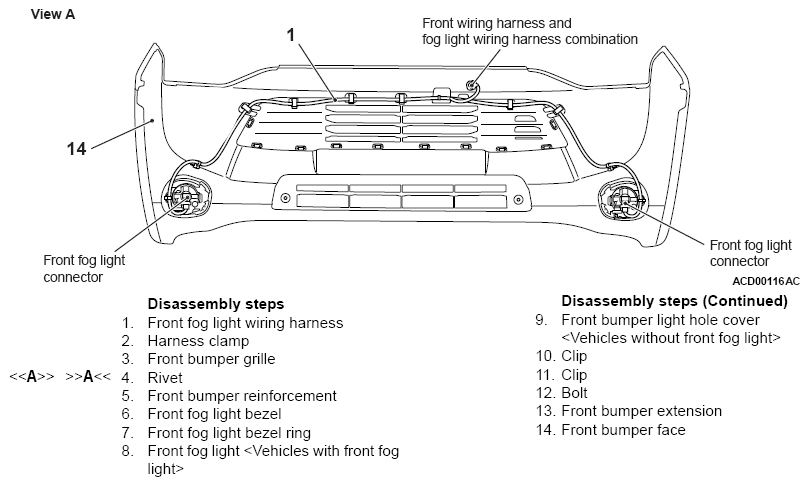

Fig 2: Disassembling/Assembling Front Bumper Assembly Components With Torque Specification (2 Of 2)
G10224869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
