Indicator check

WARNING: This page is about a different variant/trim than selected.

When the drive mode is selected by operating the drive mode selector.

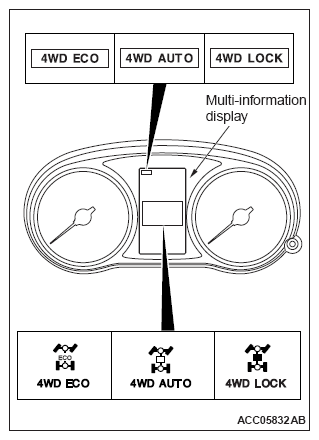

Whenever the drive mode selector is operated, either of "4WD ECO", "4WD AUTO" or "4WD LOCK" should be displayed continuously at the top and briefly at the center on the multi-information display.

Fig 1: Screen Display - Indicator Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the actuator test is executed.

"ACTUATOR TEST" should be displayed at the center on the multi-information display.

Fig 2: Screen Display - Actuator Test

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
