Tech Talk (TT225)

Publication date: 2017-11-29
Reference number: TT225

TECH TALK

TECH TALK

TECHNICAL SERVICE BULLETIN

Reference Number(s): TT225, Date of Issue:  November 29, 2016
MITSUBISHI: All Models

VEHICLE TECHNICAL INFO

GROUP 42A - Keyless Entry System

DIFFICULTY REGISTERING NON-FAST REMOTES - 2017 Outlander.

Some technicians have reported difficulty in registering the non-FAST remotes on 2017 Outlander vehicles. In these cases, try the following steps, using MUT-III SE, after reprogramming the Immobilizer.

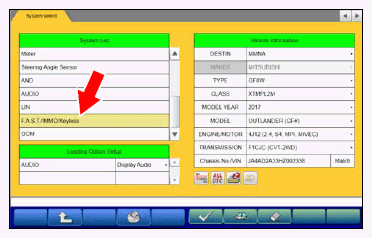

  1. On the System Select menu, select "F.A.S.T./IMMO/Keyless" from the System List menu. Under Vehicle Information, select appropriate class. If VIN does not populate, or does not match the current vehicle, click on the car icon.
    G11084029

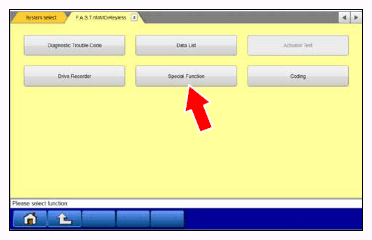

  2. From the F.A.S.T./IMMO/Keyless menu, select Special Function.
    G11084030

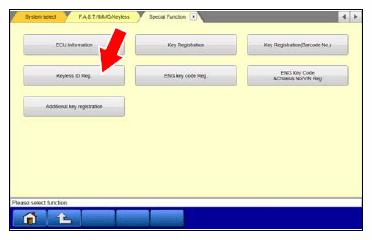

  3. From the Special Function menu, select "Keyless ID Reg." to register the transmitter (RKE) portion of the key (key and transmitter are one unit).
    G11084031

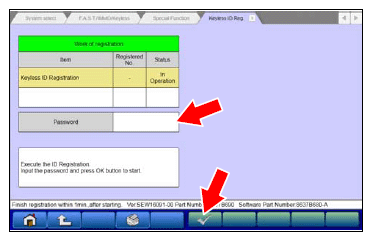

  4. Input password and click the check mark at the bottom of the page.
    G11084032
  5. REMOVE  the non-FAST key from the ignition.
    IMPORTANT: Key MUST be removed from the ignition cylinder to program the remote keyless entry (RKE) function.
  6. With the non-FAST remote removed from ignition  , press and hold the LOCK and UNLOCK buttons for 1-1.5 seconds, release both, then press and release UNLOCK.
    G11084033

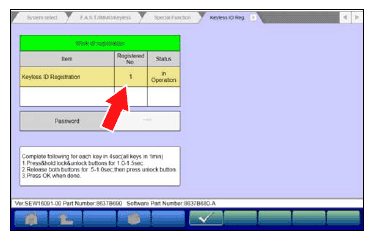

  7. Confirm the scan tool shows one remote registered.
    G11084034

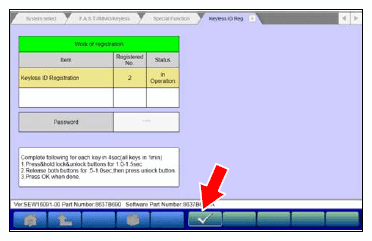

  8. Repeat steps  6 and  7 to register additional non-FAST remotes. After all transmitters are registered, click the check mark to complete registration.
    G11084035

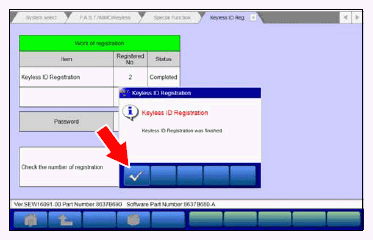

  9. Click the check mark in the pop-up window to end registration mode.
    G11084036
  10. Operate all remotes to verify proper operation and confirm all doors LOCK and UNLOCK with the newly registered remotes.

GROUP 52A - Interior

FRONT SEAT BELTS FRAYED ON EDGES - 2013-15 Outlander Sport/RVR.

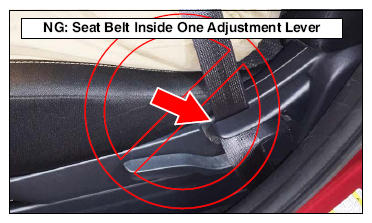

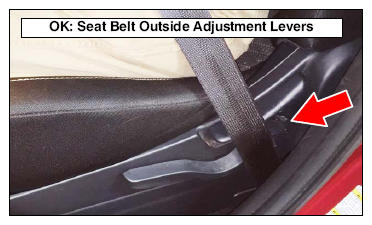

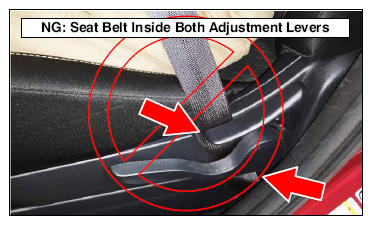

Should you encounter a front seat belt that has been frayed or damaged along the edges, inspect to see if the area of damage aligns with adjustment levers on the side of the seat when the seat belt is in use. If the damaged area is near an adjustment lever, please ensure the seat belt is not being placed inside an adjustment lever as this is not the proper position for the seat belt and can cause the seat belt to become frayed.

G11084037
G11084038
G11084039

GROUP 54A - Chassis Electrical

SOFTWARE UPDATES AVAILABLE FOR HANDS-FREE/BLUETOOTH ISSUES - All applicable models.

Dealers are reminded to check MDL for TSBs with the latest software to address issues with the FUSE Hands Free Link System. The software addresses issues with Bluetooth connection, Apple products, and USB devices. The latest software contains all available countermeasures and is the only one that should be installed.

For more detail and instructions, refer to the TSBs below:

  • TSB-16-54-001  : FUSE Hands Free Link System: Unstable Bluetooth Connection
  • TSB-15-54-001  : Hands Free Module Software Update for "Phonebook Is Empty" Message

RIGHT HAND TAILLIGHT AND FRONT MARKER LIGHTS NOT ILLUMINATED - 2011 and newer Outlander Sport/RVR.

If diagnosing both the RH taillight and RH front marker light (part of the headlight assembly) for a "not illuminated" condition, but the left side lamps are working, consider inspecting the glove box illumination bulb for a short to ground. This circuit also affects the RH Daytime Running Light (DRL) for 2015 Outlander Sport/RVR.

CALIBRATION OF MULTI AROUND MONITOR (MULTI-VIEW CAMERA) SYSTEM - 2017 Outlander.

After performing any of the following actions, camera calibration must be completed. Calibration is performed using MUT-III SE and two calibration targets (MB993003).

  • Replacement of the Camera-ECU.
  • Removal and installation/replacement of one of the four cameras.
  • Left front door, right front door or the liftgate is aligned.
  • Front bumper center cover is deformed or loosened due to collision.

The calibration targets are available to dealerships under the Special Service Tool Loaner Program. Complete the Loaner Agreement  * on MDL and email to Mark.Watts@na.mitsubishi-motors.com and mmnatechline@mmsa.com  .

* The Loaner Agreement can be found on MDL, under service -> service tech resources -> Special Service Tool Loaner Program.

GROUP 60 - Recalls

TIN-15-SC-003-B: BULLETIN REVISION - POTENTIAL TRANSMISSION SHUDDER/SURGE SERVICE CAMPAIGN - Certain 2015 Outlander Sport Equipped with 2.0L Engine and CVT-8 Automatic Transaxle.

TIN-15-SC-003-B was released recently and states:

"A revised Service Campaign bulletin will be released today to address vehicles covered by SC-15-003 "Potential Transmission Shudder/Surge - Service Campaign" and SR-16-006 "CVT Hesitation - Safety Recall Campaign" in certain 2015 Outlander Sport vehicles.

The revised service campaign bulletin includes the following instructions that dealers need to follow when encountering a vehicle included in both SC-15-003 and SR-16-006:

  • If the CVT-ECU was previously reprogrammed as part of SR-16-006 "CVT Hesitation - Safety Recall Campaign" and the customer did not inform the dealer that they had experienced a shudder or surge condition, this Service Campaign (SC-15-003) does not apply. The CVT-ECU reprogram for SR-16-006 includes all the necessary programming fixes for this Service Campaign.
  • If a vehicle has both SC-15-003 and SR-16-006 open, and the customer does not inform the dealer that they had experienced a shudder or surge condition, complete SR-16-006 only.
  • If a vehicle has both SC-15-003 and SR-16-006 open, and in the rare case that the customer informs the dealer that they had experienced a shudder or surge condition, complete SR-16-006, then follow SC-15-003's procedure for shudder/surge condition.

The revised Service Campaign bulletin will be available today on MEDIC and MDL.

When checking for applicability of SC-15-003 (C1512Z) and SR-16-006 (C1606Z), please check for and complete any other open campaigns. Always get the customer's approval before completing a campaign on a customer owned vehicle."

IMPORTANT: To maximize customer satisfaction with the quality of their vehicle, affected new or used inventory vehicles should be remedied before the vehicle is delivered. Dealers must check their inventory vehicles' VINs on the Warranty Superscreen to verify whether the vehicle is involved in this service campaign.
IMPORTANT: Affected new or used inventory vehicles must be repaired before the vehicle is delivered. Dealers must check their inventory vehicles' VINs on the Warranty Superscreen to verify whether the vehicle is involved in a recall campaign. It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by the notification under a sale or lease until the defect or noncompliance is remedied.

TIN-15-SC-004-B: BULLETIN REVISION - POTENTIAL TRANSMISSION SHUDDER/SURGE SERVICE CAMPAIGN - Certain 2016 Outlander Equipped with 2.4L Engine and CVT-8 Automatic Transaxle.

TIN-15-SC-004-B was released recently and states:

"A revised Service Campaign bulletin will be released today to address vehicles covered by SC-15-004 "Potential Transmission Shudder/Surge - Service Campaign" and SR-16-006 "CVT Hesitation - Safety Recall Campaign" in certain 2016 Outlander vehicles. The revised service campaign bulletin includes the following instructions that dealers need to follow when encountering a vehicle included in both SC-15-004 and SR-16-006:

  • If the CVT-ECU was previously reprogrammed as part of SR-16-006 "CVT Hesitation - Safety Recall Campaign" and the customer did not inform the dealer that they had experienced a shudder or surge condition, this Service Campaign (SC-15-004) does not apply. The CVT-ECU reprogram for SR-16-006 includes all the necessary programming fixes for this Service Campaign.
  • If a vehicle has both SC-15-004 and SR-16-006 open, and the customer does not inform the dealer that they had experienced a shudder or surge condition, complete SR-16-006 only.
  • If a vehicle has both SC-15-004 and SR-16-006 open, and in the rare case that the customer informs the dealer that they had experienced a shudder or surge condition, complete SR-16-006, then follow SC-15-004's procedure for shudder/surge condition.

The revised Service Campaign bulletin will be available today on MEDIC and MDL.

When checking for applicability of SC-15-004 (C1513R) and SR-16-006 (C1607Z), please check for and complete any other open campaigns. Always get the customer's approval before completing a campaign on a customer owned vehicle."

IMPORTANT: To maximize customer satisfaction with the quality of their vehicle, affected new or used inventory vehicles should be remedied before the vehicle is delivered. Dealers must check their inventory vehicles' VINs on the Warranty Superscreen to verify whether the vehicle is involved in this service campaign.
IMPORTANT: Affected new or used inventory vehicles must be repaired before the vehicle is delivered. Dealers must check their inventory vehicles' VINs on the Warranty Superscreen to verify whether the vehicle is involved in a recall campaign. It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by the notification under a sale or lease until the defect or noncompliance is remedied.

GROUP 66 - Accessories

√ SHIFT LEVER BINDING: ACCESSORY SHIFT GATE LED INSTALLATION (MZ360248EX) - 2014-17 Outlander.

NOTE: This article is being reprinted to add 2015-17 model year Outlander vehicles.

When removing the CVT or A/T shift indicator panel for LED installation, it is possible to dislodge the shifter dust shield slide from its run channel. As a result, the slider will contact other shifter components when the transmission is shifted from park (P), reverse (R) or neutral (N) to drive (D) and be dislodged from its run channels. Significant damage to the shifter dust shield will result and the shifter assembly must be replaced.

G11084040
G11084041

To reduce the possibility of damaging the dust shield, set the parking brake and move the shift lever to the N position prior to removing the shift indicator panel. Make sure the wheels are chocked to prevent the vehicle moving.

If the dust shield is dislodged from its run channel during LED light kit installation, reinstall it, then, confirm free movement of the shield when shifting to D, prior to reassembly  .
