A/T Control Component Layout

Name	Symbol
A/T control relay	B
Output shaft speed sensor	A
A/T control solenoid valve assembly connector	E
Paddle shift switch	G
AWC-ECU (Vehicles with S-AWC)	F
Selector lever assembly (incorporating shift lock solenoid)	I
Data link connector	H
Transaxle control module (TCM)	F
Input shaft speed sensor	C
Transmission range switch	D

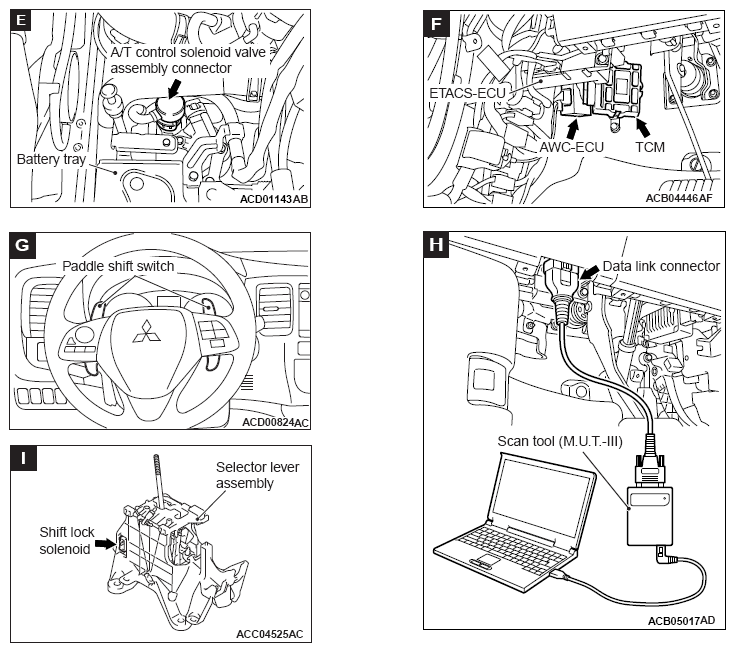

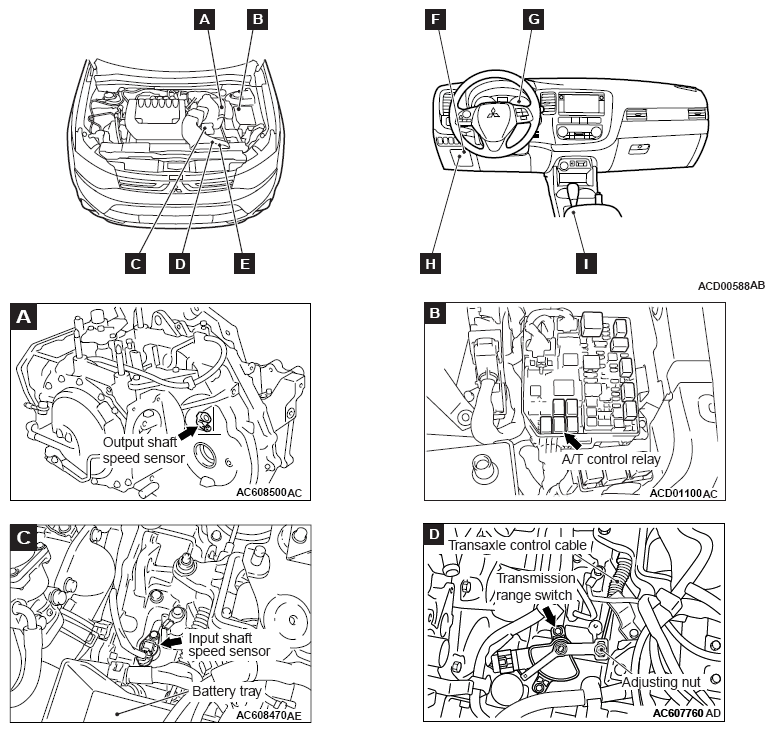

Fig 1: Identifying A/T Control Components Layout (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying A/T Control Components Layout (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Name	Symbol
Electronic control coupling (front) (Vehicles with S-AWC)	J
Electronic control coupling (center) (Vehicles with S-AWC)	K

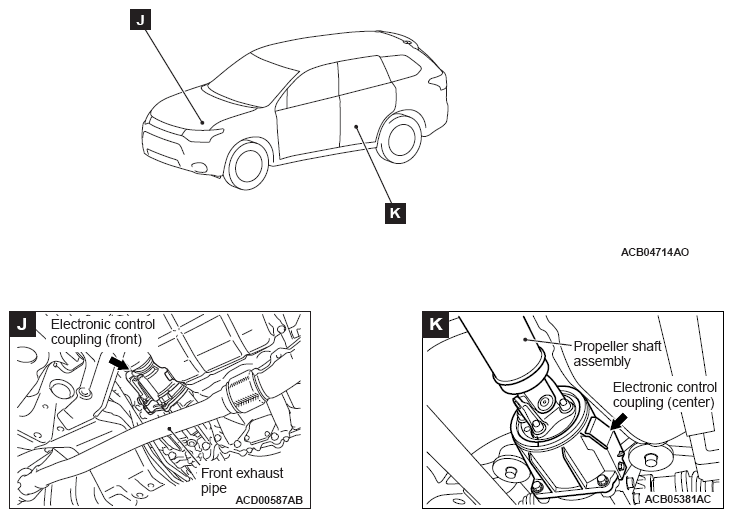

Fig 3: Identifying Electronic Control Coupling

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
