Disassembly And Reassembly: Notes

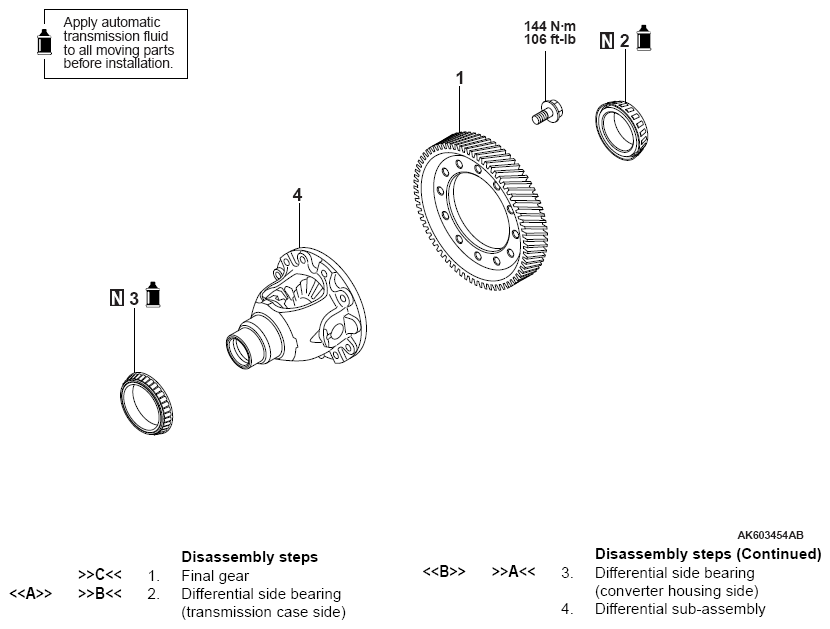

Fig 1: Exploded View Of Differential Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB990801: Real axle bearing puller
• MB990811: Side bearing puller cap
• MB990956: Needle bearing installer
• MB990810: Side bearing puller
• MD999566: Claw
• MD998761: Cam oil seal installer
• MD998812: Installer cap
• MD998813: Installer-100
• MB992213: Bearing installer
• MB992150: Oil seal installer
