DTC 15: Cruise Control Switch System
›
Notes
DTC 15: Cruise Control Switch System: Notes

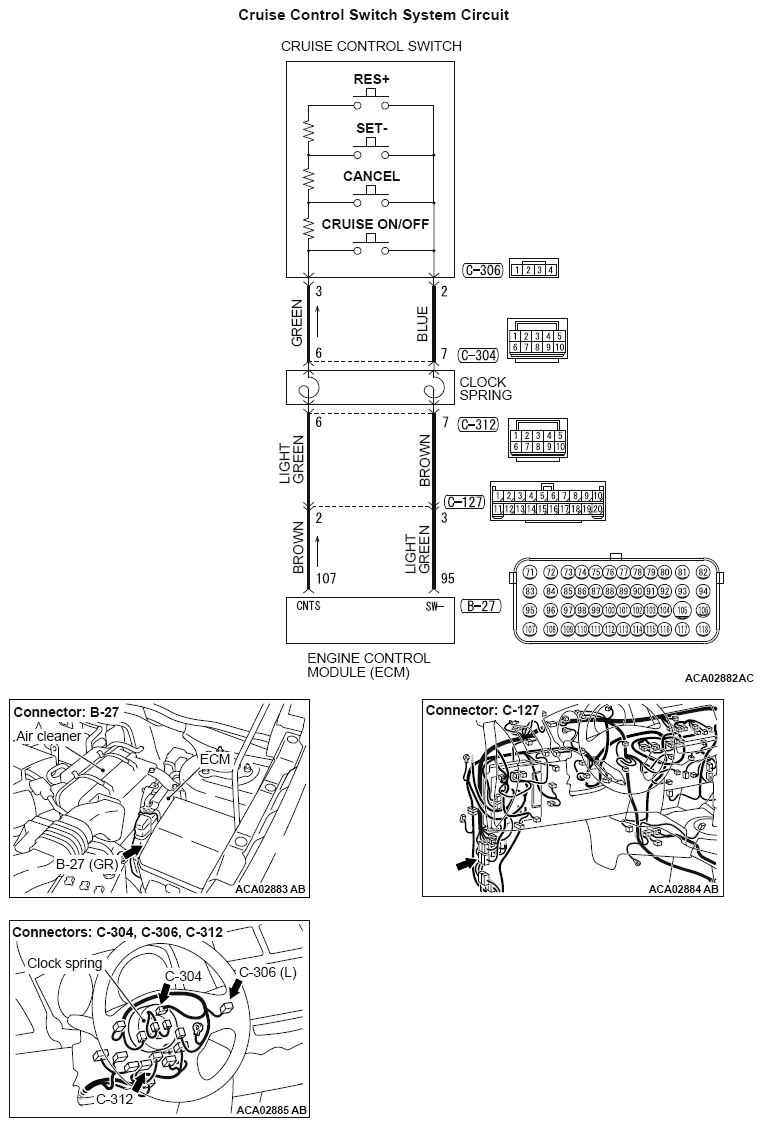

Fig 1: Cruise Control Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
