Disassembly And Assembly: Notes

CAUTION:

• As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.
• The EBJ boot for FWD-RH is not replaceable.

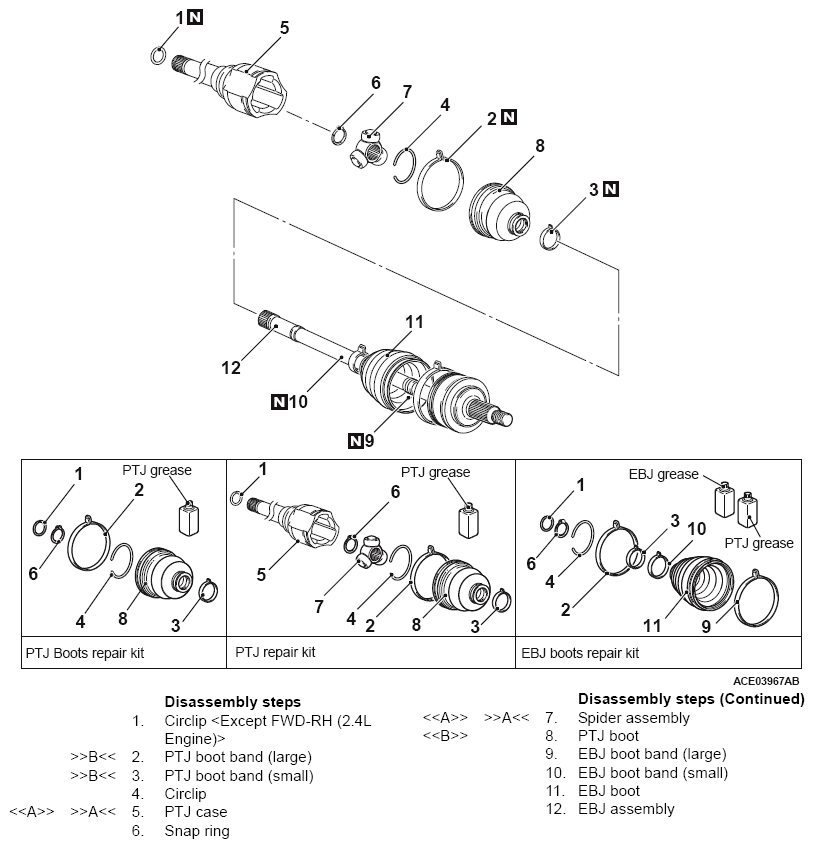

Fig 1: Disassembling/Assembling Driveshaft Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
