Removal And Installation: Notes

CAUTION:

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the driveshaft assembly, make sure that the magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
When removing and installing the front wheel speed sensor, make sure that the sensor head at the end does not contact with surrounding parts to avoid damage.
The parts indicated by * are the nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal operation

Engine Room Side Cover Removal (Refer to REMOVAL AND INSTALLATION .)
Transmission Fluid Draining (Refer to TRANSMISSION OIL CHANGE .) < M/T >
CVT Fluid Draining (Refer to CVT FLUID CHANGE < F1CJC/W1CJC > or CVT FLUID CHANGE < F1CJA/W1CJA >.) < CVT >

Post-installation operation

Using Your Fingers, Press The Ball Joint Dust Cover to Check for A Crack or Damage.
Transmission Fluid Refilling (Refer to TRANSMISSION OIL CHANGE .) < M/T >
CVT Fluid Refilling (Refer to CVT FLUID CHANGE < F1CJC/W1CJC > or CVT FLUID CHANGE < F1CJA/W1CJA >.) < CVT >
Engine Room Side Cover Installation (Refer to REMOVAL AND INSTALLATION .)

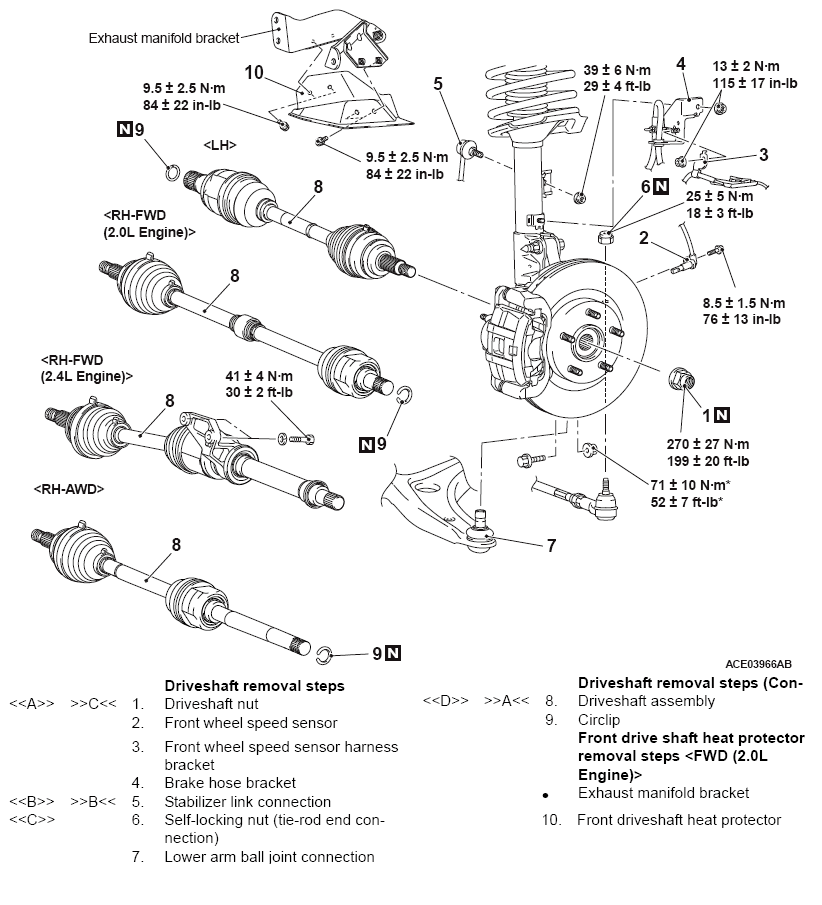

Fig 1: Removing/Installing Driveshaft Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

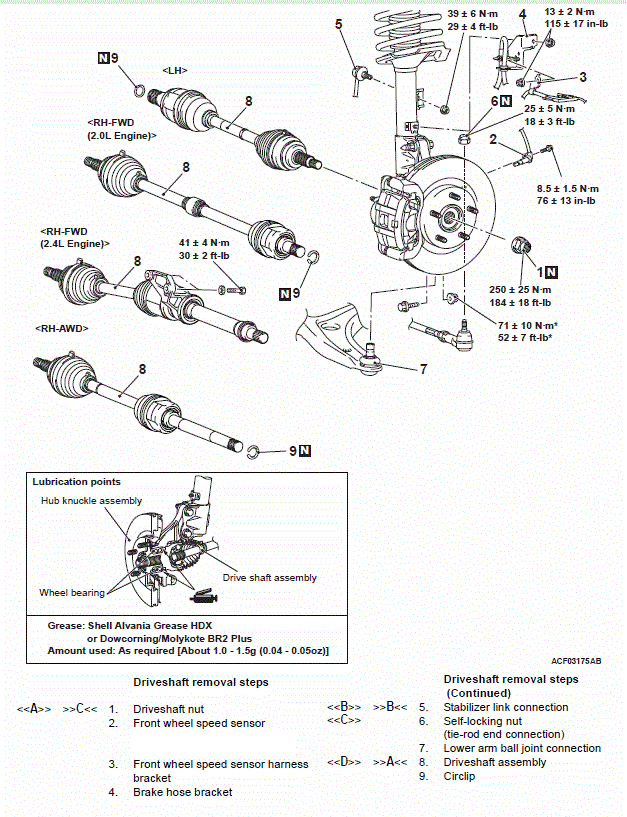

Fig 2: Removing/Installing Driveshaft Assembly Components With Torque Specification (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
