Removal And Installation: Notes

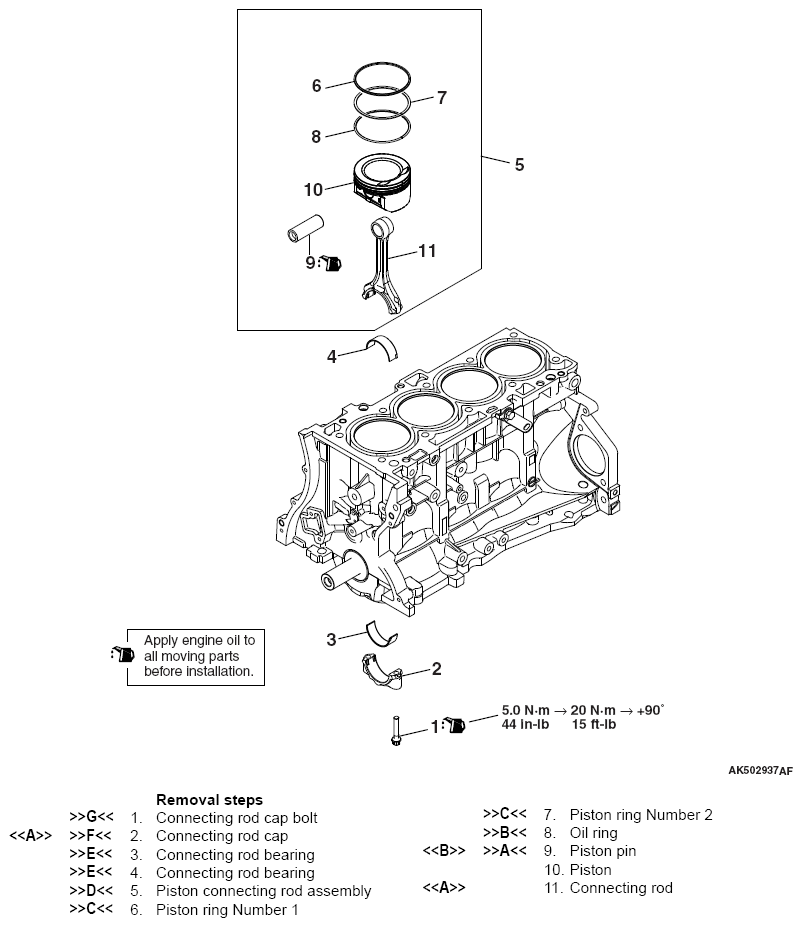

Fig 1: Piston And Connecting Rod Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MD998780: Piston pin setting tool
• MB991659: Guide D
• MD998718: Rear oil seal installer
