Disassembly And Assembly: Notes

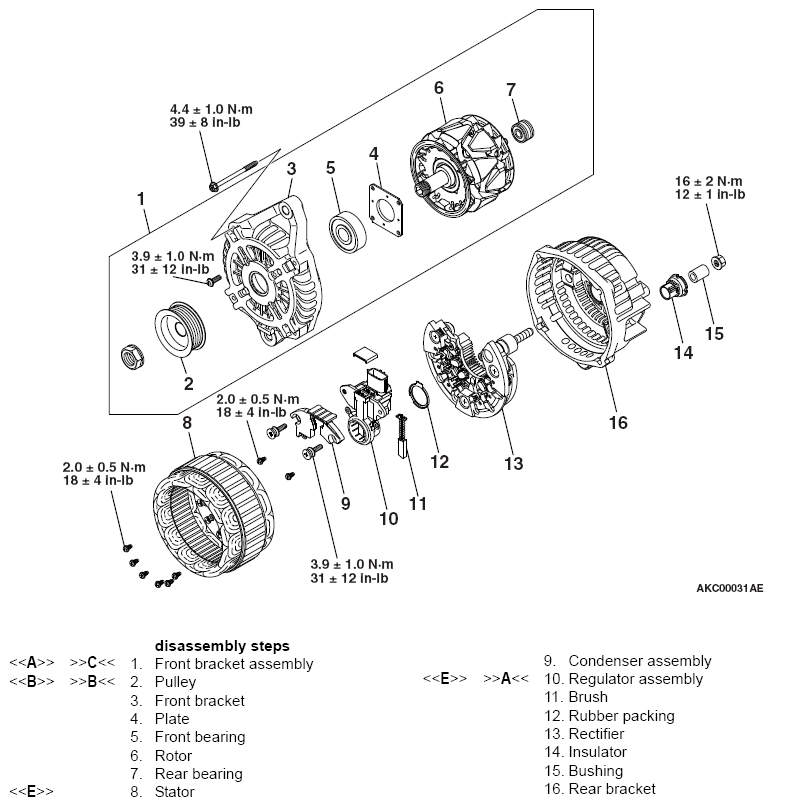

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

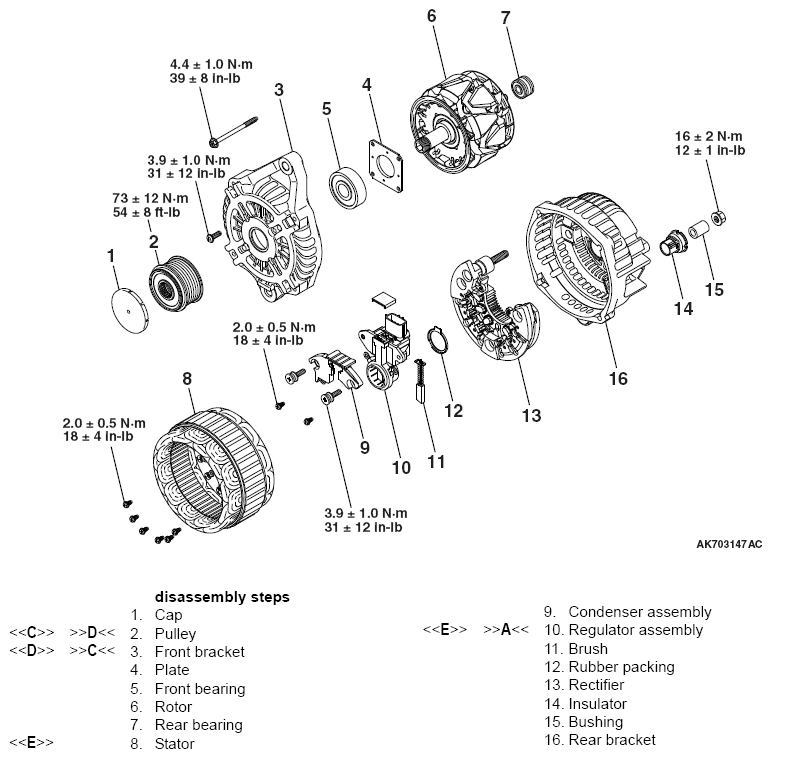

Fig 2: Disassembling/Assembling Generator Assembly Components With Torque Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992226: Serration Socket
