FixVault
Home
›
Mitsubishi
›
2017
›
Mirage ES, Automatic CVT Trans
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Seat Assembly
›
Disassembly And Reassembly
›
Notes
Disassembly And Reassembly: Notes

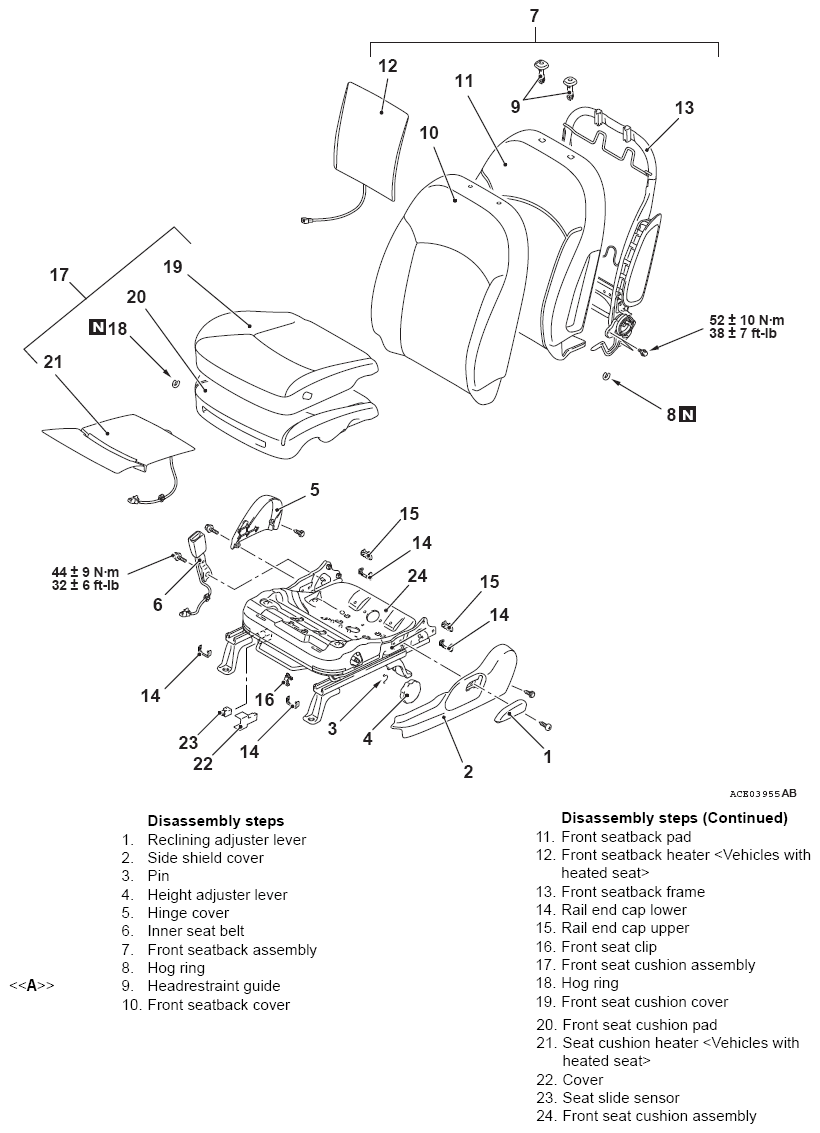

Fig 1: Seat Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
