Removal And Installation: Notes

Pre-removal operation  Removal of Steering wheel assembly (Refer to STEERING WHEEL .) Removal of Steering column lower cover and steering column upper cover (Refer to STEERING SHAFT .) Removal of Column switch body (Refer to COLUMN SWITCH .) Removal of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .)

Post-installation operation  Installation of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .) Removal of Column switch body (Refer to COLUMN SWITCH .) Installation of Steering column lower cover and steering column upper cover (Refer to STEERING SHAFT .) Removal of Steering wheel assembly (Refer to STEERING WHEEL .)

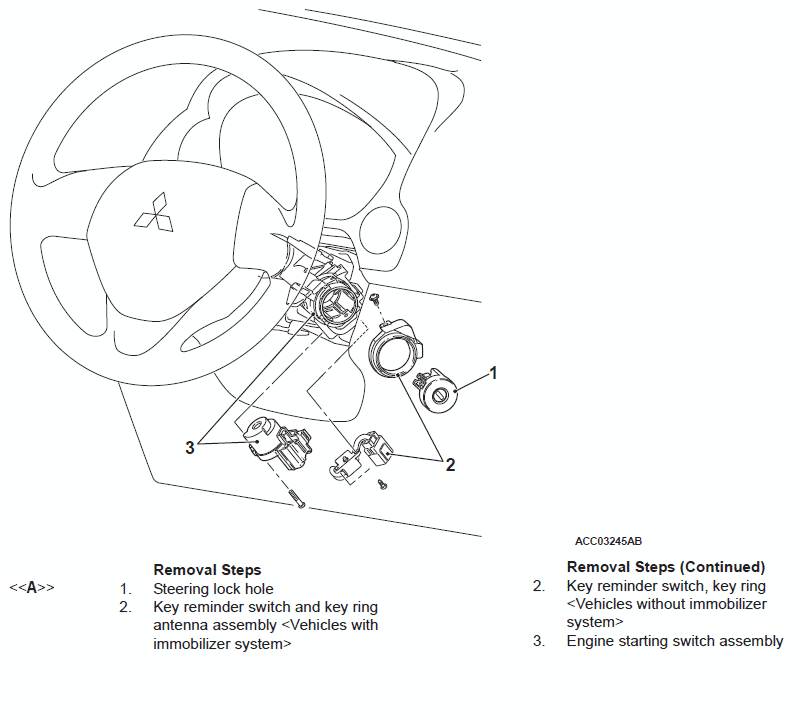

Fig 1: Ignition Key Reminder Tone Alarm Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
