Removal And Installation

Pre-removal and post-installation operation
  • Rear Washer Nozzle, Rear Wiper Blade and Wiper Arm Assembly Removal and Installation (Refer to REAR WIPER AND WASHER ).
  • High-mounted Stop Light Removal and Installation <Vehicles without Liftback Spoiler> (Refer to HIGH-MOUNTED STOP LIGHT ).
  • Liftback Spoiler Assembly Removal and Installation <Vehicles with Liftback Spoiler> (Refer to LIFTBACK SPOILER ).
Fig 1: Liftgate Window Glass Components (1 Of 2)
G11280380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

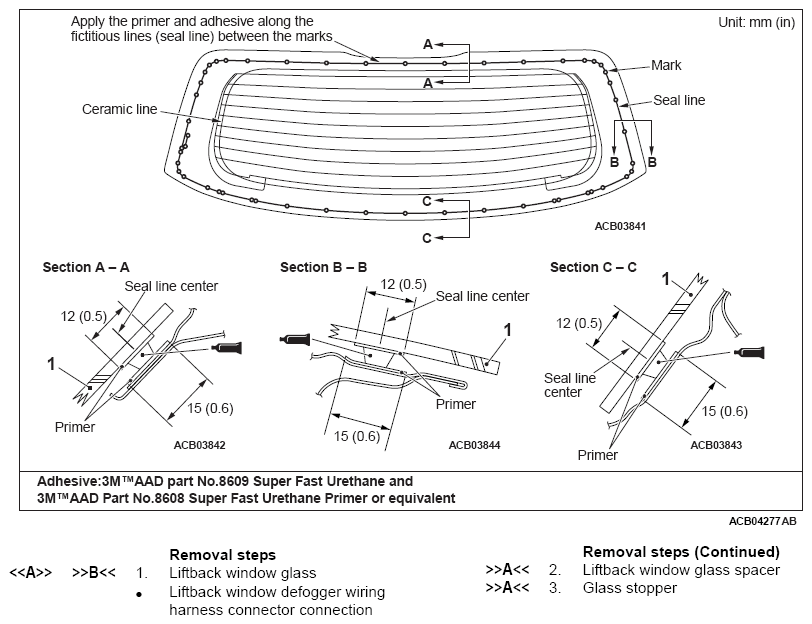

Fig 2: Liftgate Window Glass Components (2 Of 2)
G11280381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
