Home › Mitsubishi › 2017 › Mirage ES, Standard Trans › Repair and Diagnosis › Electrical › Body Electrical › Splice Locations › Liftgate

Splice Locations: Liftgate

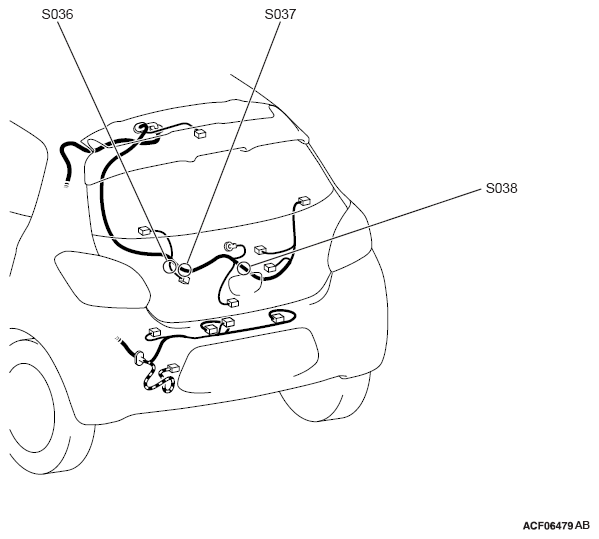

Fig 1: Liftgate Splice Locations
G11281313Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
