Removal And Installation: Notes

Pre-removal Operation

• Fuel Draining
• Rear Seat Cushion Assembly Removal (Refer to REAR SEAT ASSEMBLY ).

Post-installation Operation

• Checking for Fuel Leaks.
• Rear Seat Cushion Assembly Installation (Refer to REAR SEAT ASSEMBLY ).
• Refilling Fuel

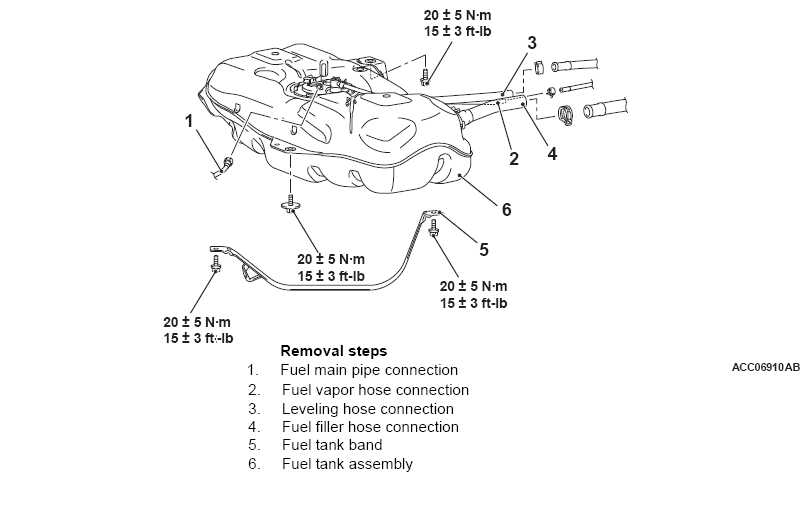

Fig 1: Fuel Tank Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
