Removal And Installation: Notes

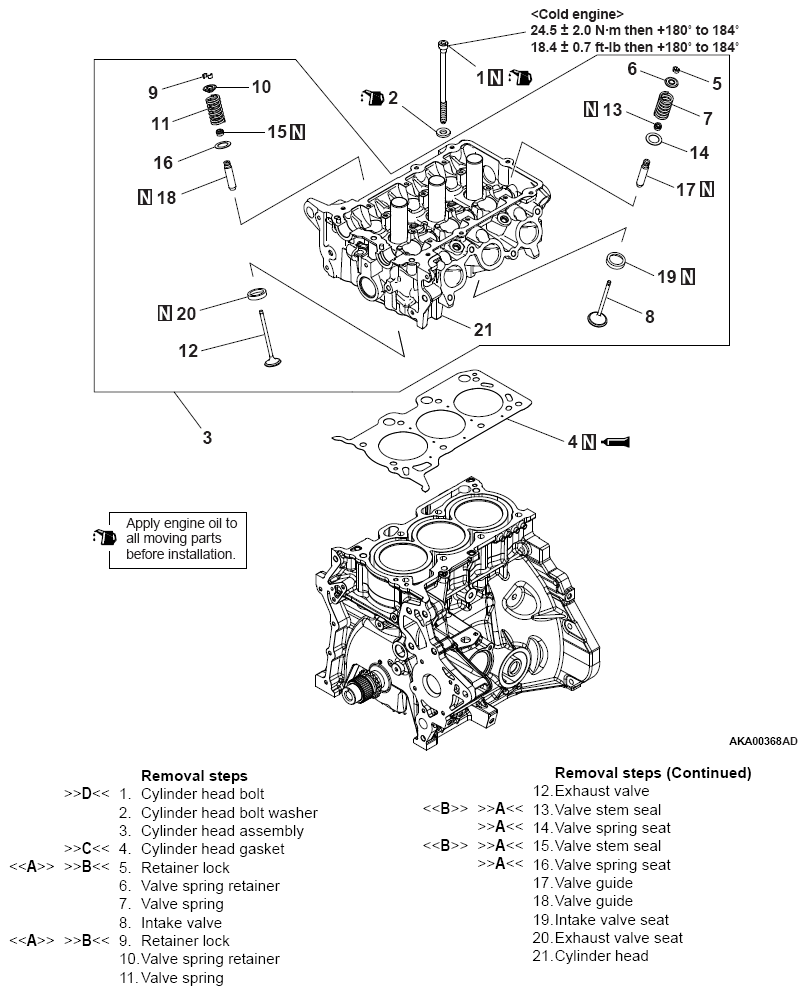

Fig 1: Cylinder Head And Valves Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD999597: Valve Spring Compressor
• MB992085: Valve Stem Seal Pliers
• MB992922: Valve Stem Seal Installer Adjustable
