Removal And Installation: Notes

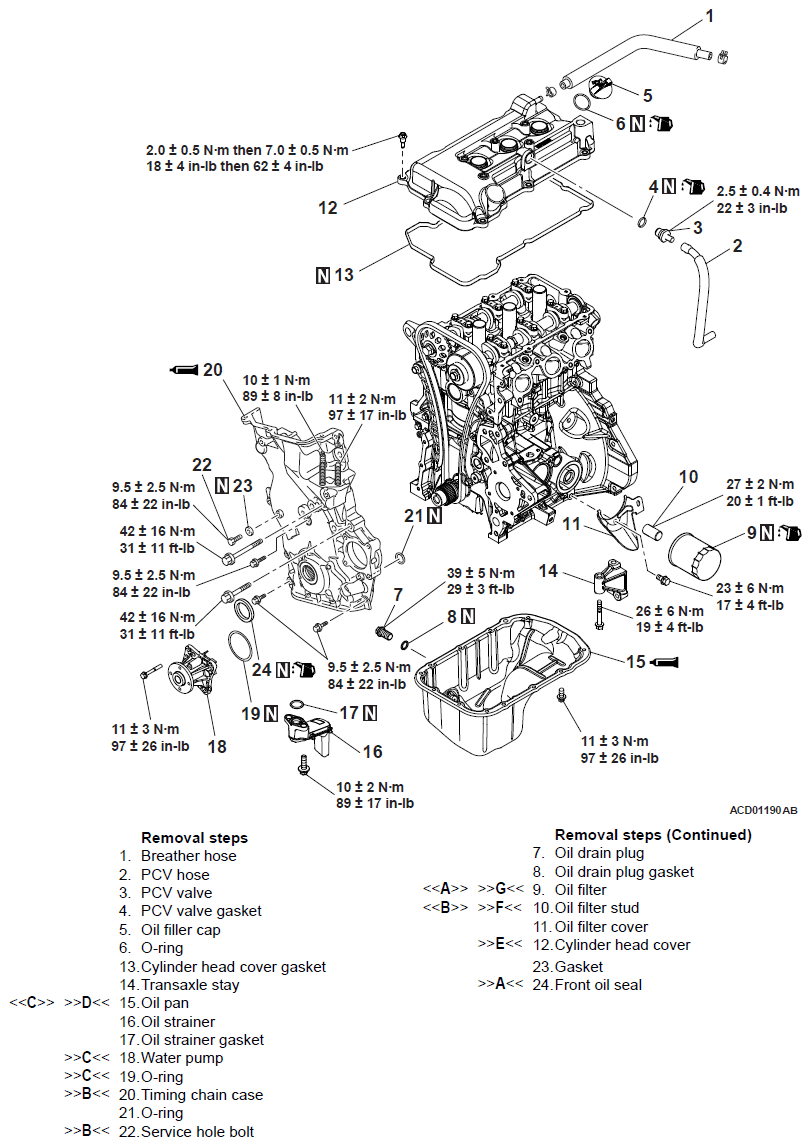

Fig 1: Oil Pan And Timing Chain Case Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991396: Oil Filter Wrench
• MB991828: Oil Filter Wrench
• MD998727: Oil Pan FIPG Cutter
• MB990699: Differential Oil Seal Installer
• MB991993: Crankshaft Front Oil Seal Guide
• MB992676: Oil Filter Stud Setter
