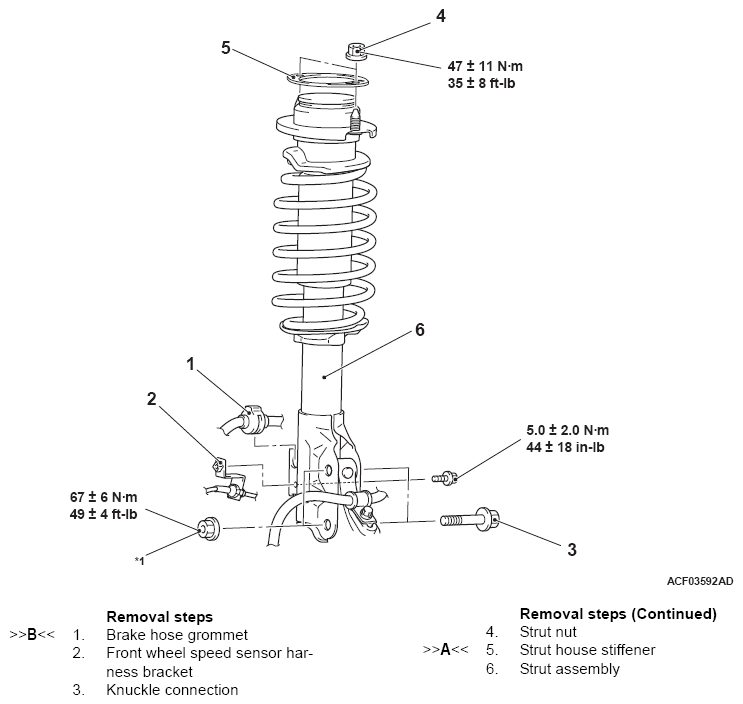

Removal And Installation: Notes
CAUTION:
- The parts indicated by *1 are the nut with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Post-installation Operation
- Front Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE ).
