Removal And Installation: Notes

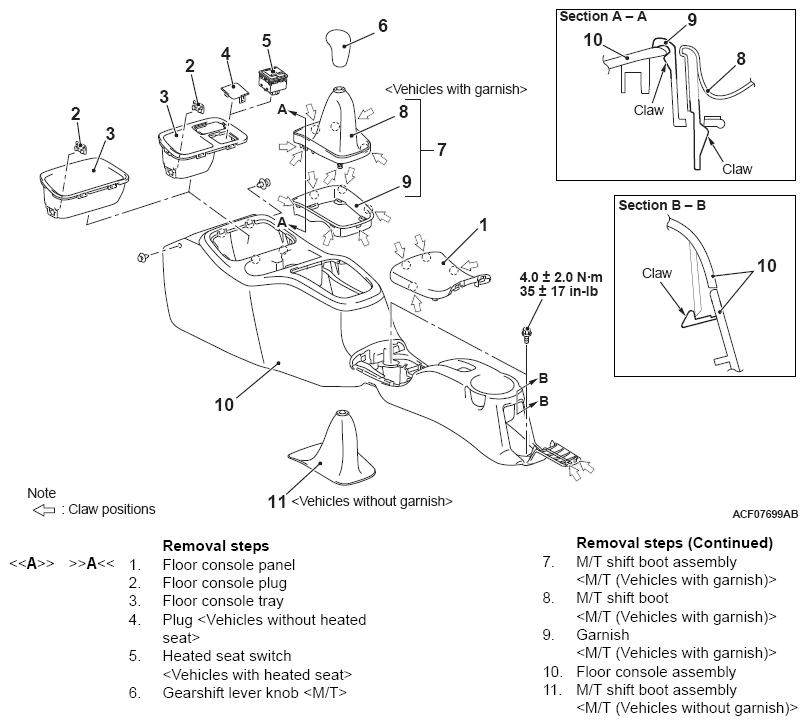

Fig 1: Exploded View Of Floor Console Assembly
G11467981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
