Home › Mitsubishi › 2017 › Mirage G4 ES, Standard Trans › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Instrument Center Panel › Removal And Installation › Notes

Removal And Installation: Notes

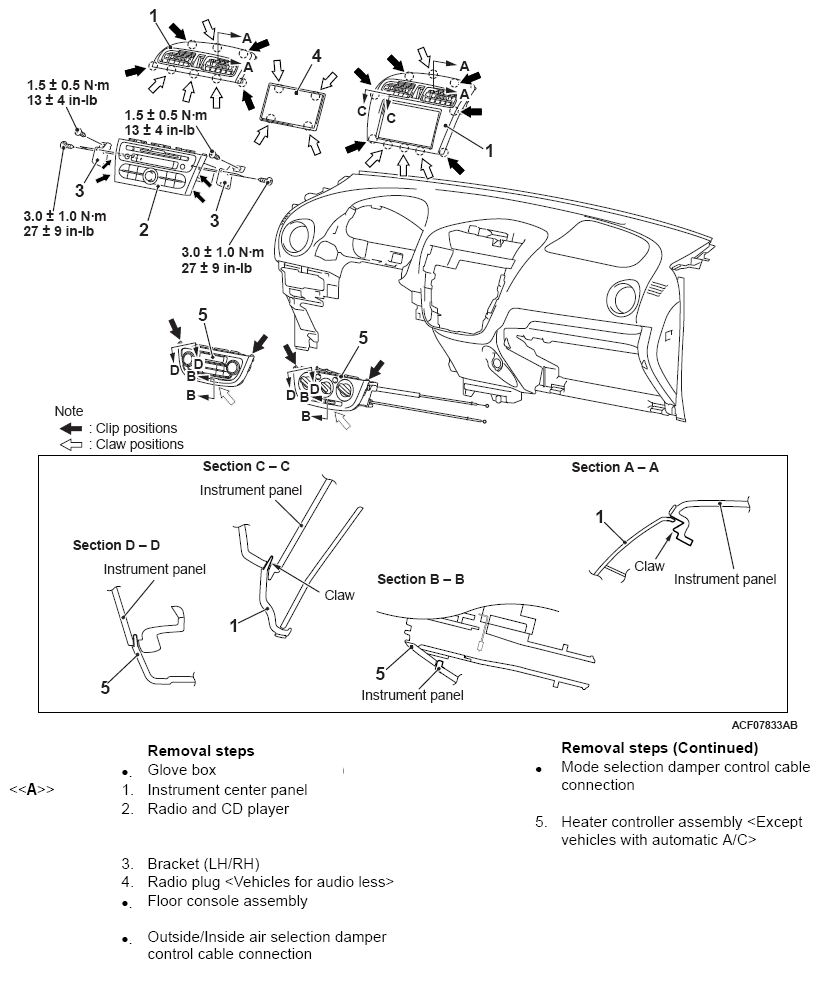

Fig 1: Exploded View Of Instrument Center Panel
G11467978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
