Removal And Installation

Pre-removal Operation

• Air Cleaner Assembly Removal (Refer to AIR CLEANER ).

Post-installation Operation

• Air Cleaner Assembly Installation (Refer to AIR CLEANER ).

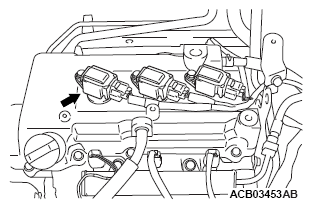

Fig 1: Ignition Coil Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the removal and installation procedures, refer to GENERATOR AND IGNITION SYSTEM .
