Notes
Removal And Installation: Notes
Pre-removal Operation
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
).
Post-installation Operation
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
).

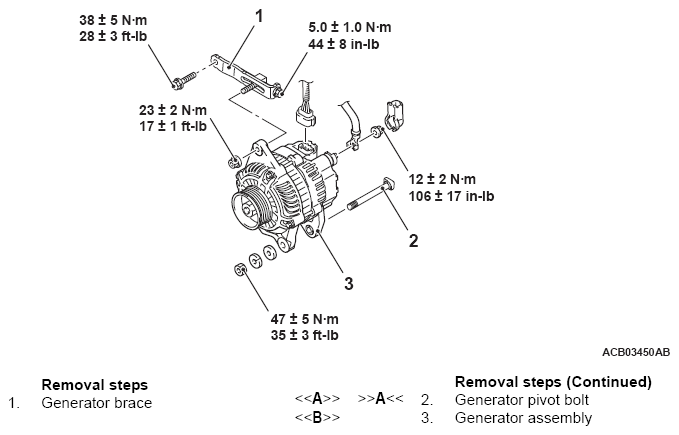

Fig 1: Generator Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
