Home › Mitsubishi › 2017 › Mirage SE, Standard Trans › Repair and Diagnosis › Engine Performance › Tune-Up › Engine Overhaul › Ignition System › Removal And Installation › Notes

Removal And Installation: Notes

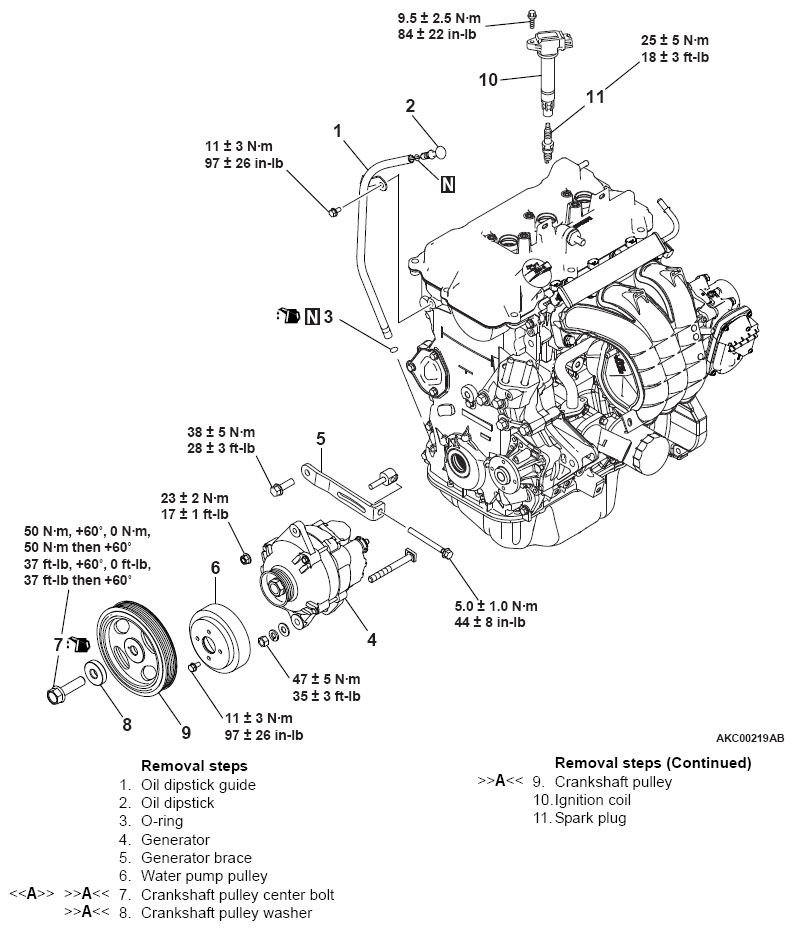

Fig 1: Generator And Ignition System Components With Torque Specifications
G11277467Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
