Cruise Control On/Off Switch Check

1. Turn the ignition switch to the "ON" position.
2. Push the cruise control ON/OFF switch of the cruise control switches, and check that the cruise control indicator lamp within the combination meter illuminates <standard meter> or the cruise control display screen is displayed on the multi information display in the combination meter <high contrast meter>.
3. Push the cruise control ON/OFF switch again, and check that the cruise control indicator lamp within the combination meter <standard meter> or the cruise control display screen goes out <high contrast meter>.

Fig 1: Pushing Cruise Control ON/OFF Switch Of Cruise Control Switches

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

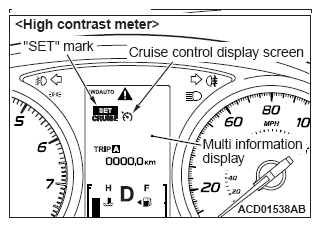

Fig 2: Cruise Control Display Screen (High Contrast Meter)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
