Removal And Installation
Removal And Installation

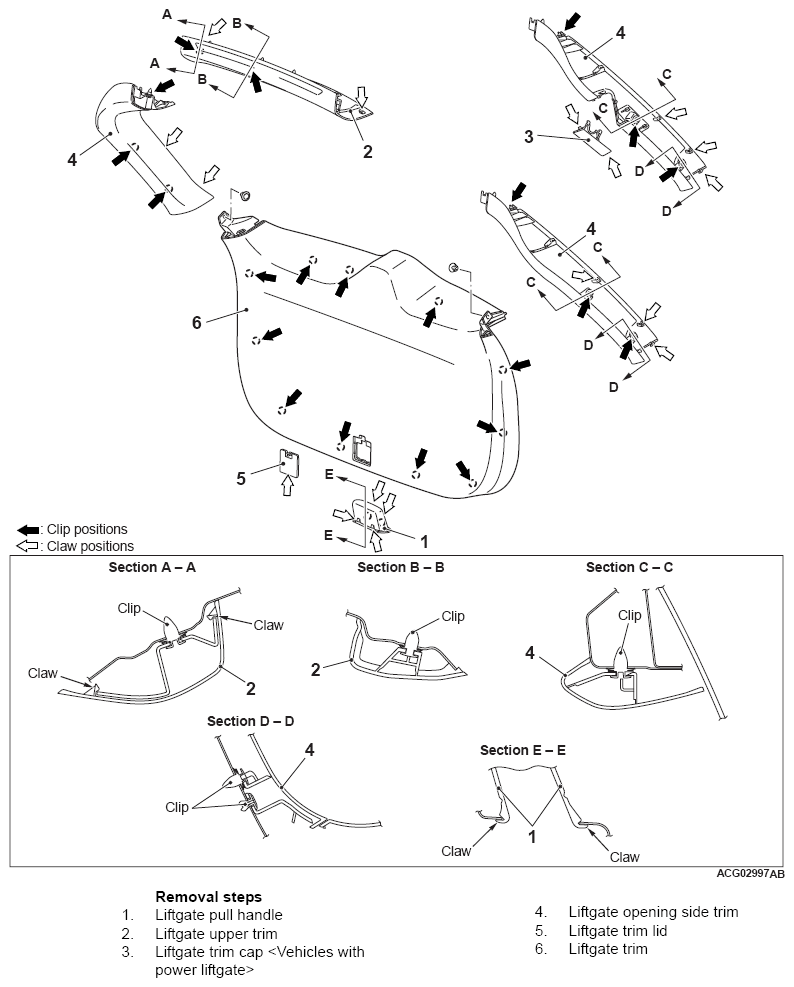

Fig 1: Removing/Installing Liftgate Trim Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
