Disassembly And Reassembly: Notes

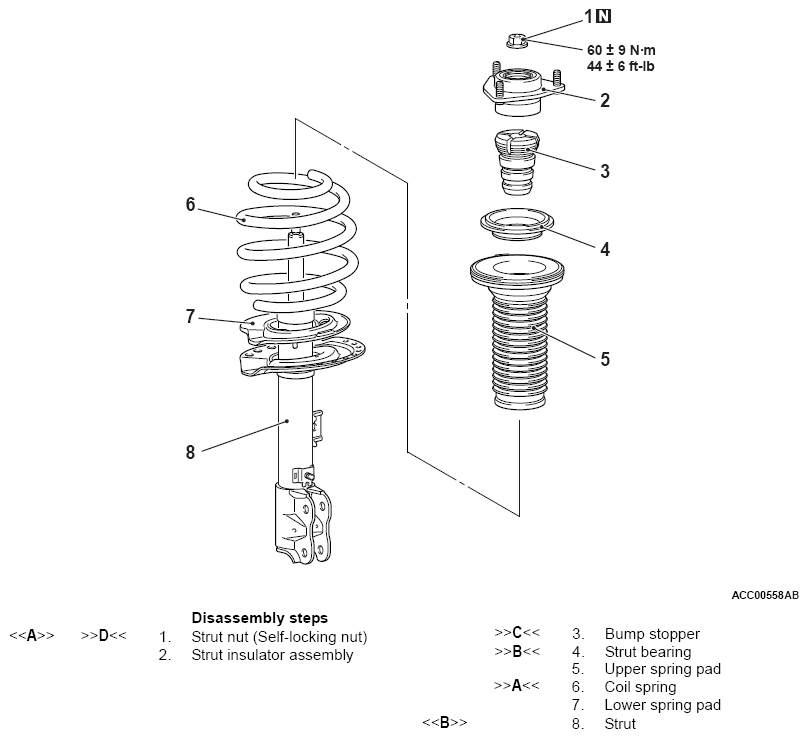

Fig 1: Disassembling/Assembling Strut Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991681: Wrench
• MB991682: Socket
• MB991793: Spring compressor
• MB991794: Upper plate
• MB991795: Attachment A
• MB991830: Fixture
