Continuously Variable Transaxle (CVT)
›
General Information
›
Description Of Structure And Operation
Description Of Structure And Operation
SECTIONAL VIEW

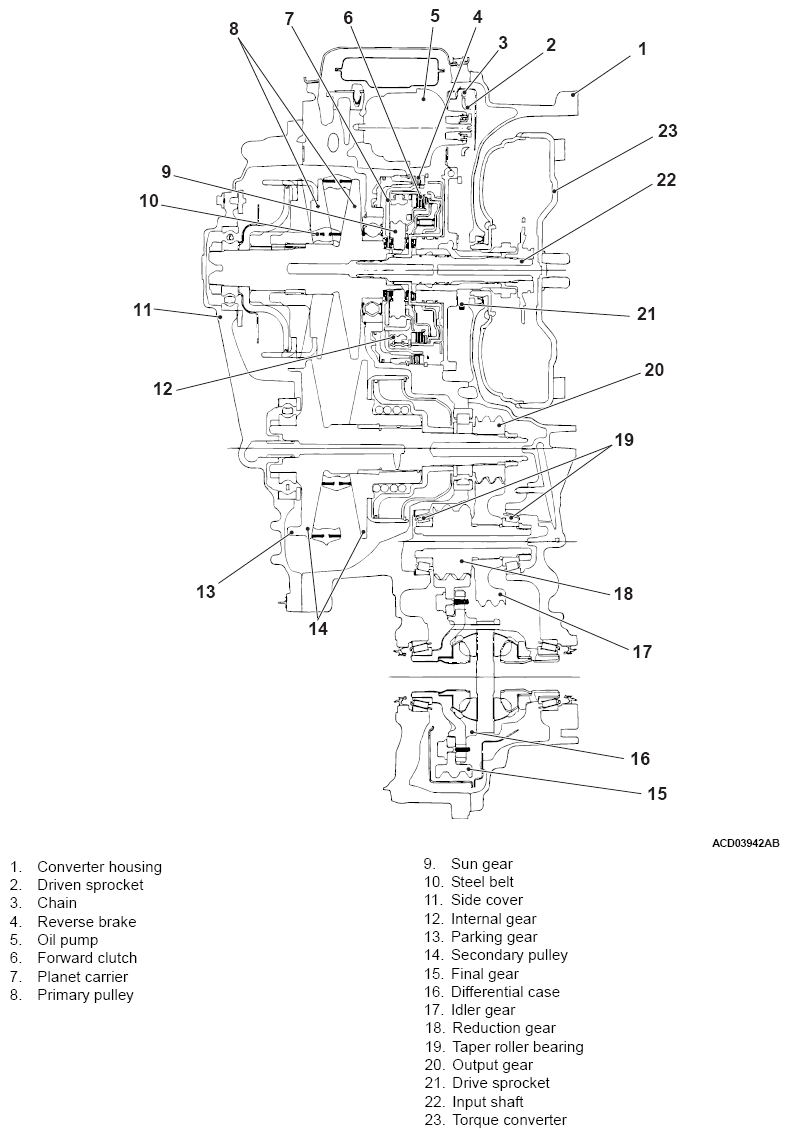

Fig 1: Sectional View Of CVT
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
