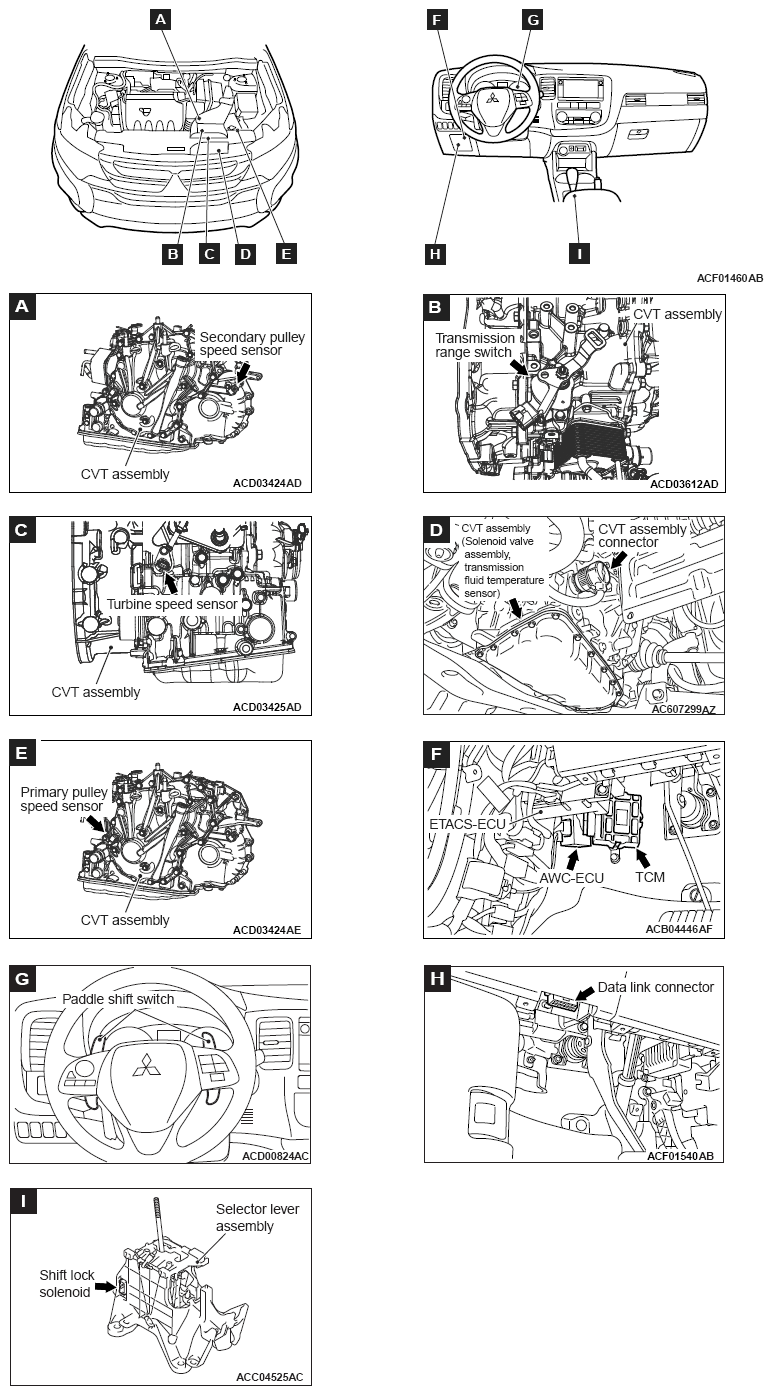

Control System Component Part Configuration Diagram

Name	Symbol	Name	Symbol
CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor)	D	Primary pulley speed sensor	E
TCM	F	Secondary pulley speed sensor	A
Data link connector	H	Shift lock solenoid	I
Transmission range switch	B	Turbine speed sensor	C
Paddle shift switch	G	-	-

Fig 1: Control System Component Part Configuration Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
