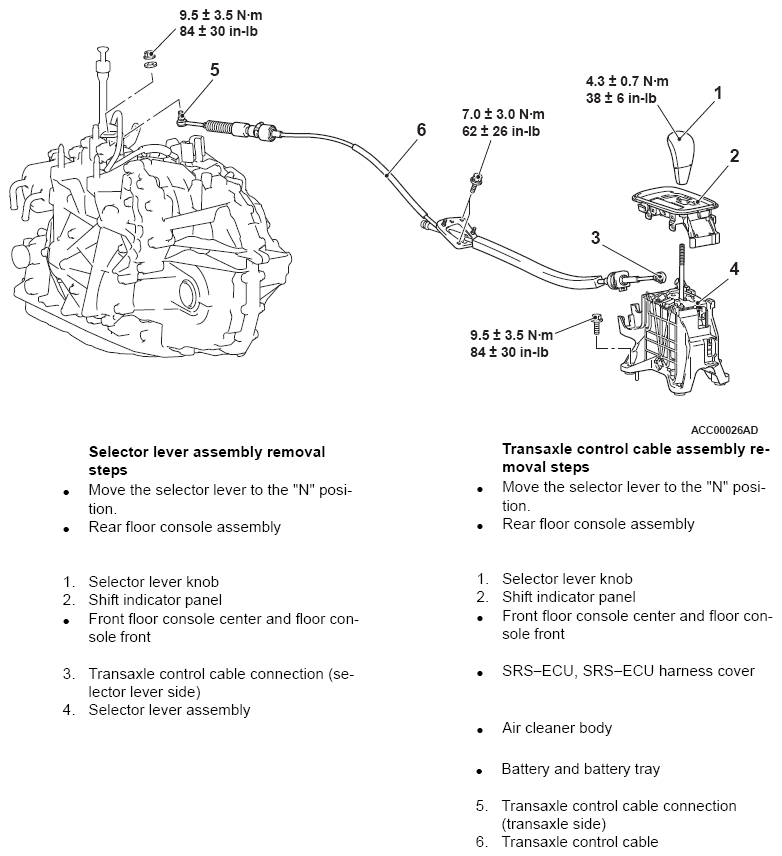

Removal And Installation
WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.
CAUTION:
- To remove and installation the SRS-ECU, refer to SERVICE PRECAUTIONS and SRS Control Unit SRS CONTROL UNIT (SRS-ECU) .
Post-installation operation
- Shift lock mechanism check (Refer to SHIFT LOCK MECHANISM CHECK .)
- Selector lever operation check (Refer to ELECTRONIC CONTROL COUPLING SOLENOID (FRONT) CHECK <Vehicles with S-AWC> .)
- Transmission range switch and control cable adjustment (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)
