REMOVAL AND INSTALLATION <3.0L Engine>

Pre-removal operation  Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ). Driveshaft Assembly (RH) Removal <Vehicles with S-AWC> (Refer to DRIVESHAFT ASSEMBLY ).

Post-installation operation  Driveshaft Assembly (RH) Installation <Vehicles with S-AWC> (Refer to DRIVESHAFT ASSEMBLY ). Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

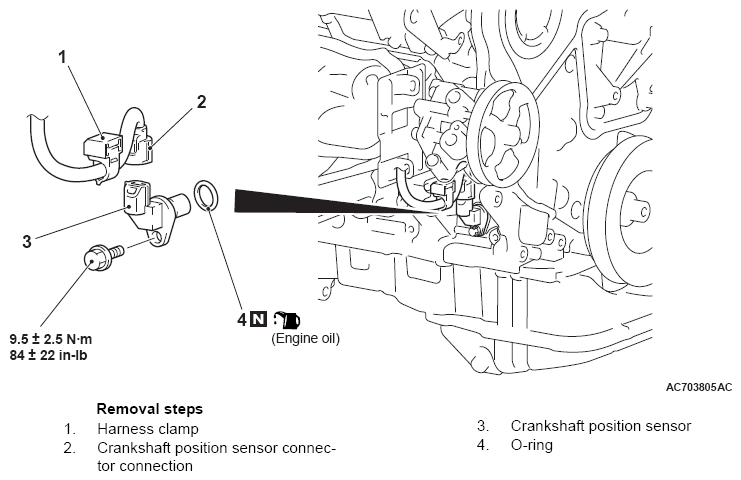

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specifications (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
