Removal And Installation

Pre-removal and post-installation operation

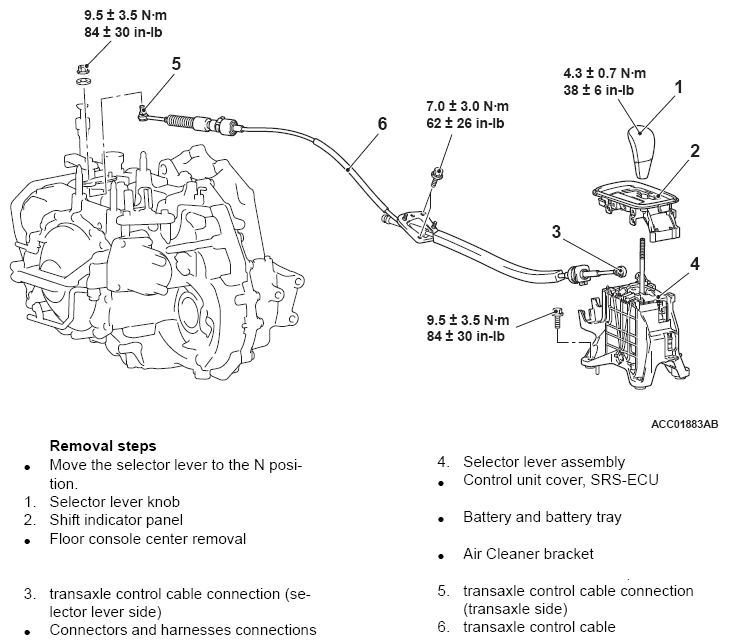

Fig 1: Removing/Installing Transaxle Control Components With Torque Specifications
G12119799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
