FixVault
Home
›
Mitsubishi
›
2017
›
RVR ES, Automatic CVT Trans
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Engine Overhaul (2.0L Engine)
›
Camshaft
›
Removal And Installation
›
Notes
Removal And Installation: Notes

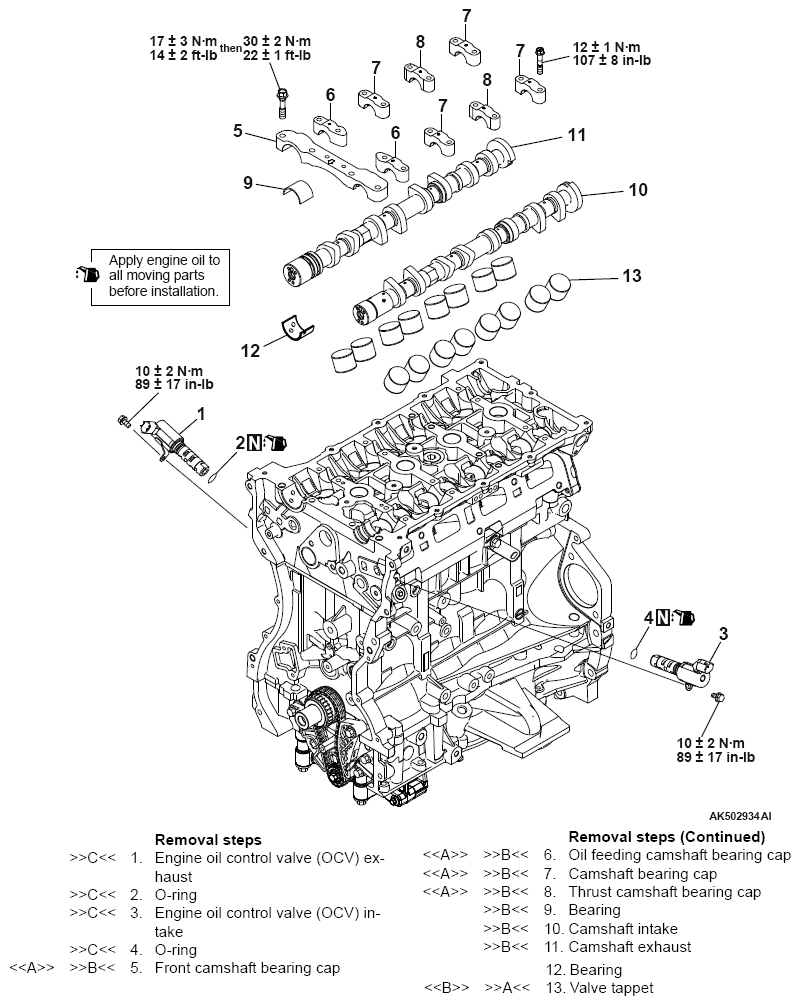

Fig 1: Removing/Installing Camshaft Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
