Removal And Installation

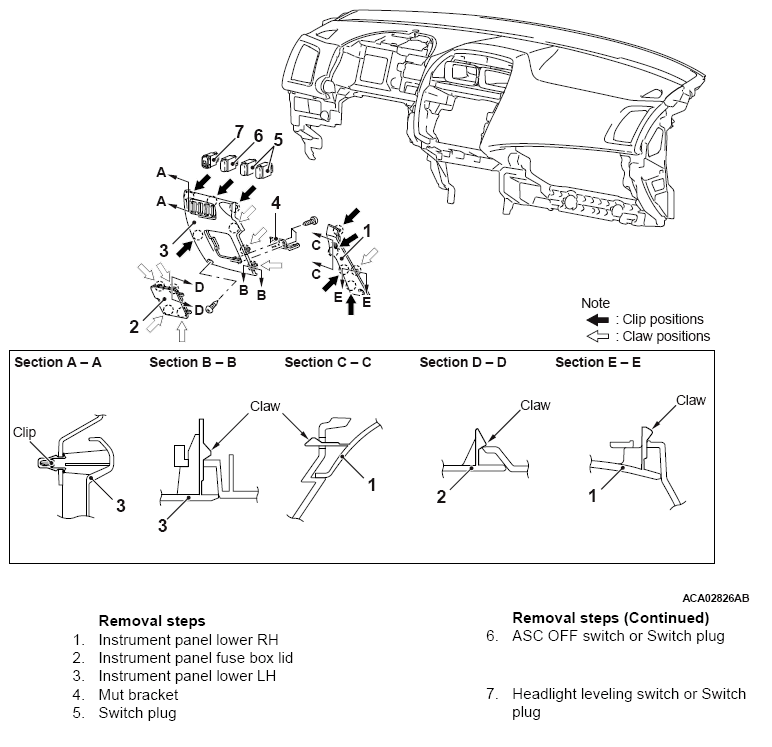

Fig 1: Removing/Installing Instrument Lower Panel Components
G10231935Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

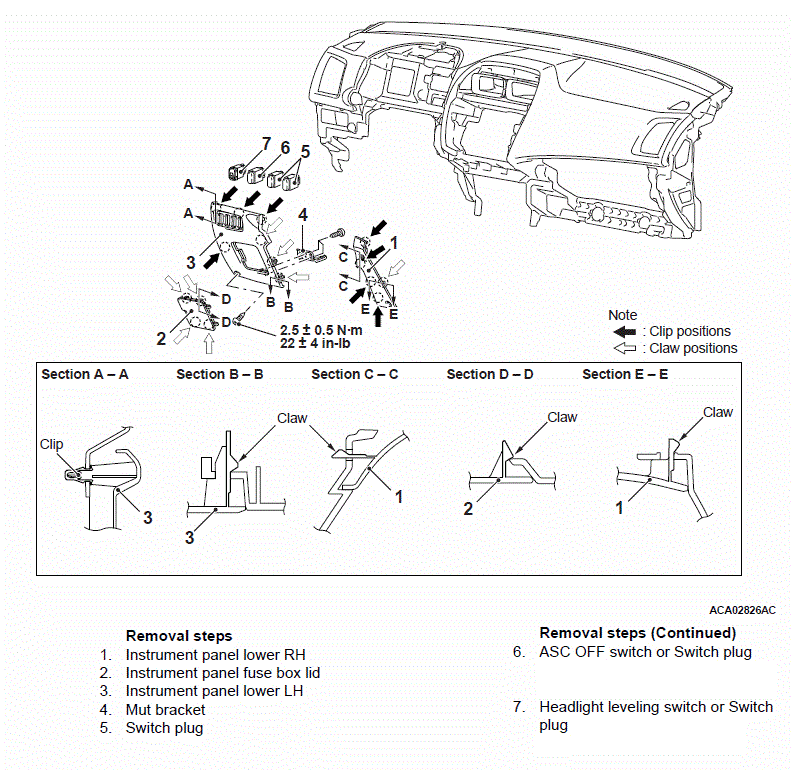

Fig 2: Removing/Installing Instrument Lower Panel Components (2016)
G00557943Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
