DTC 22: Stoplight Switch System: Notes

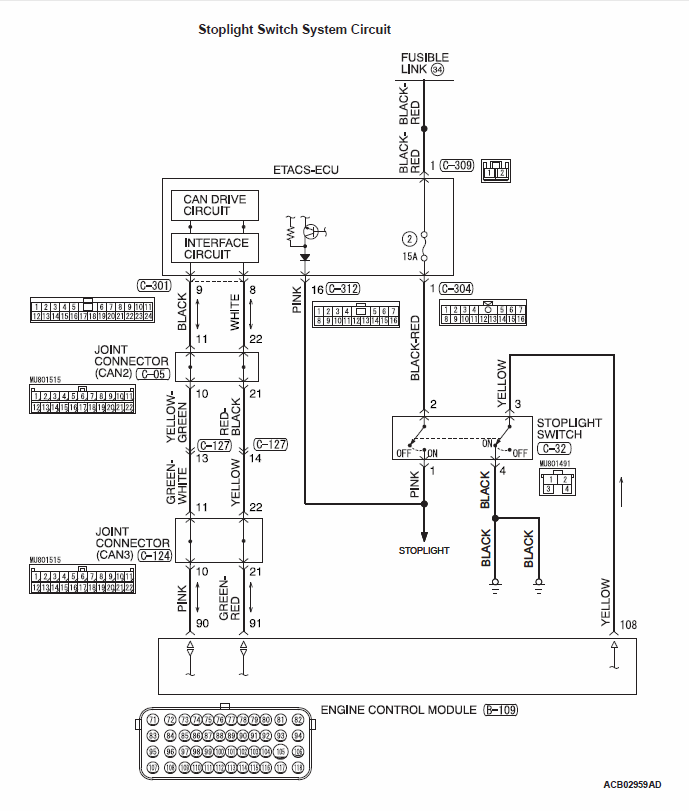

Fig 1: Stoplight Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

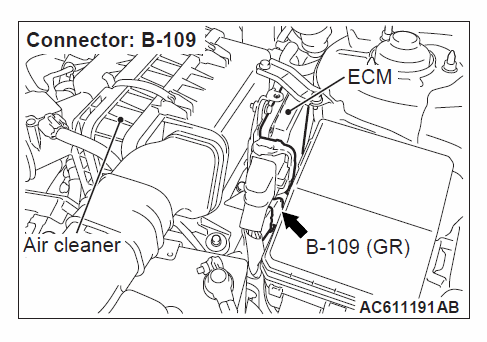

Fig 2: Connector B-109, Air Cleaner & ECM

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

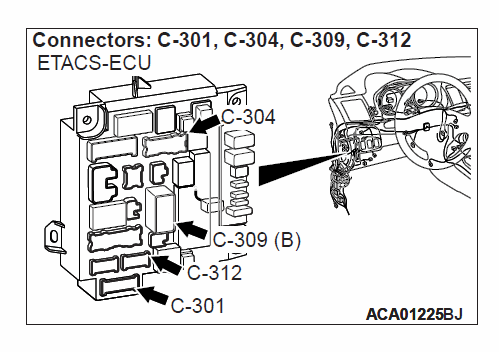

Fig 3: ETACS-ECU, Connectors C-301, C-304, C-309 & C-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

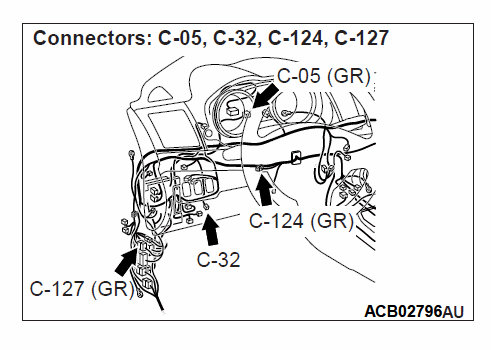

Fig 4: Connectors C-05, C-32, C-124 & C-127

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
