Cruise Control On/Off Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE ON/OFF" switch is pressed (cruise control system: ON.)
  3. Press the "CRUISE ON/OFF" switch again (cruise control system: OFF), and check that the "CRUISE" indicator light within the combination meter goes out.

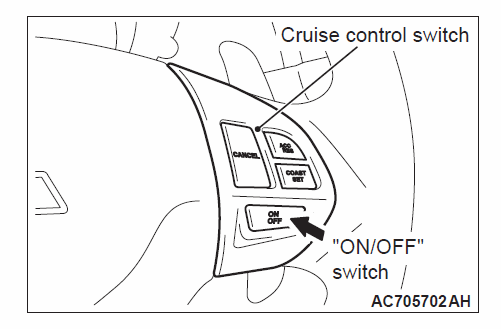

    Fig 1: Identifying Cruise Control Switch Position
    G00577056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Cruise Indicator Light In Combination Meter
    G00577057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
