Removal And Installation: Notes

Pre-removal and post-installation operation

• Quarter trim upper removal and installation (Refer to INTERIOR TRIM .)

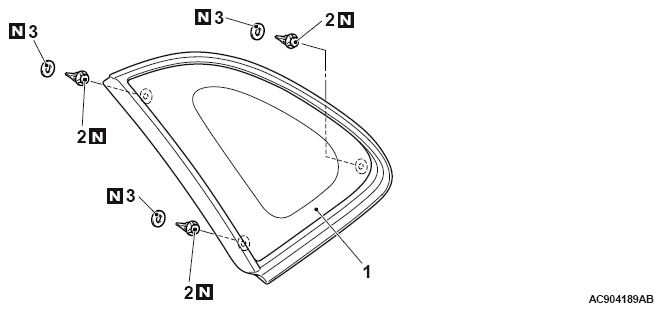

  Fig 1: Removing/Installing Quarter Window Glass Components (1 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

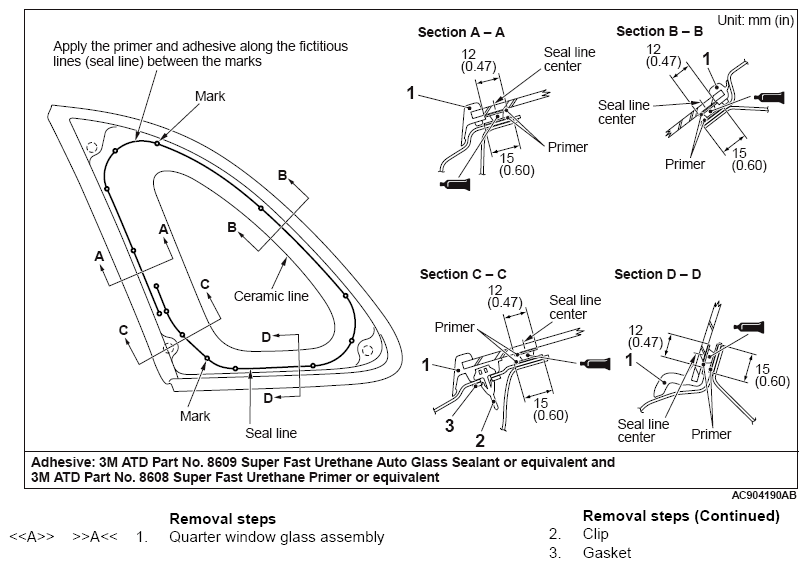

  Fig 2: Removing/Installing Quarter Window Glass Components (2 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
