Removal And Installation: Notes

Pre-removal Operation

Engine Room Under Cover Front A Removal (Refer to UNDER COVER ).
Emission Vacuum Hose Removal (Refer to INTAKE MANIFOLD ).
Brake Booster Vacuum Hose Removal (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY ).
Intake Manifold Stay Removal (Refer to INTAKE MANIFOLD ).

Post-installation Operation

Intake Manifold Stay Installation (Refer to INTAKE MANIFOLD ).
Brake Booster Vacuum Hose Installation (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY ).
Emission Vacuum Hose Installation (Refer to INTAKE MANIFOLD ).
Engine Room Under Cover Front A Installation (Refer to UNDER COVER ).

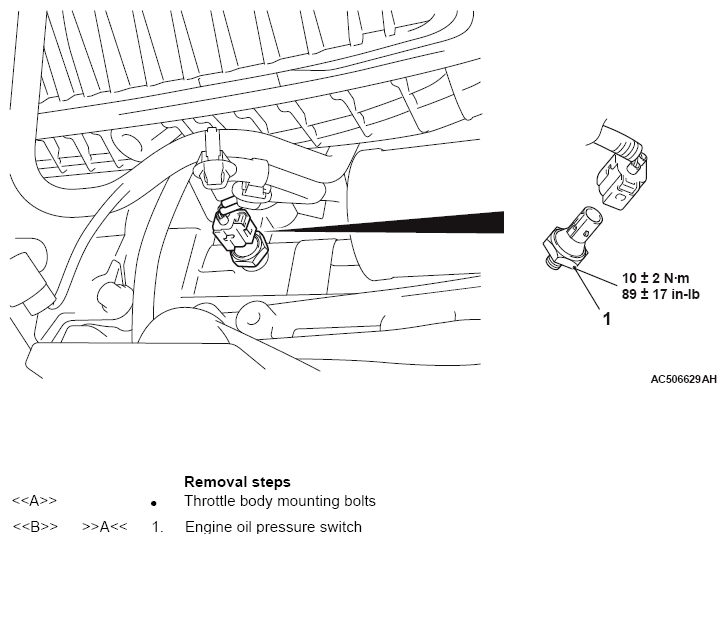

Fig 1: Identifying Engine Oil Pressure Switch With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
