Camshaft Position Sensor
›
Removal And Installation
Removal And Installation

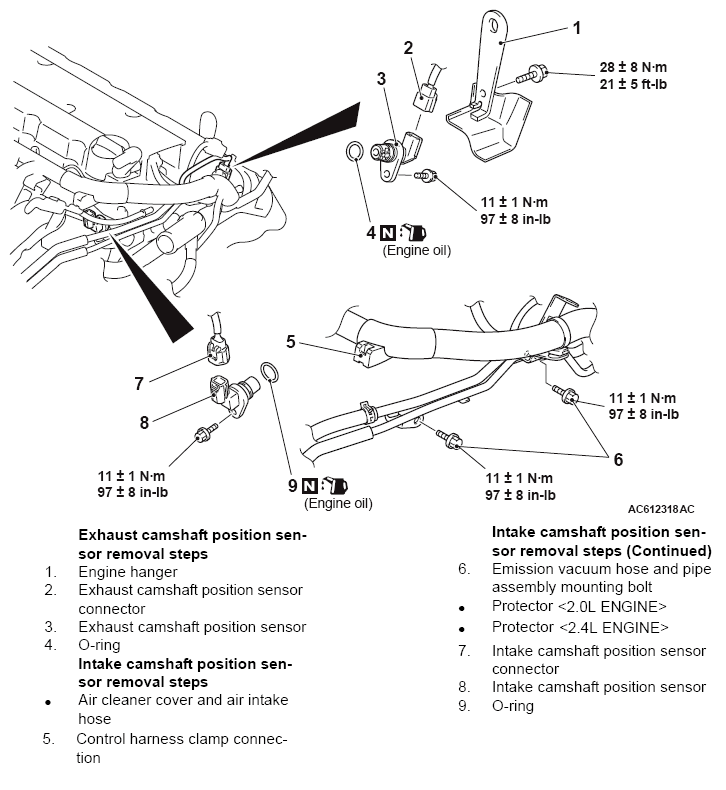

Fig 1: Identifying Camshaft Position Sensor Related Components With Tightening Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
