Removal And Installation
Removal And Installation
Pre-removal and post-installation operation
Air Cleaner Assembly Removal and Installation (Refer to
AIR CLEANER
).

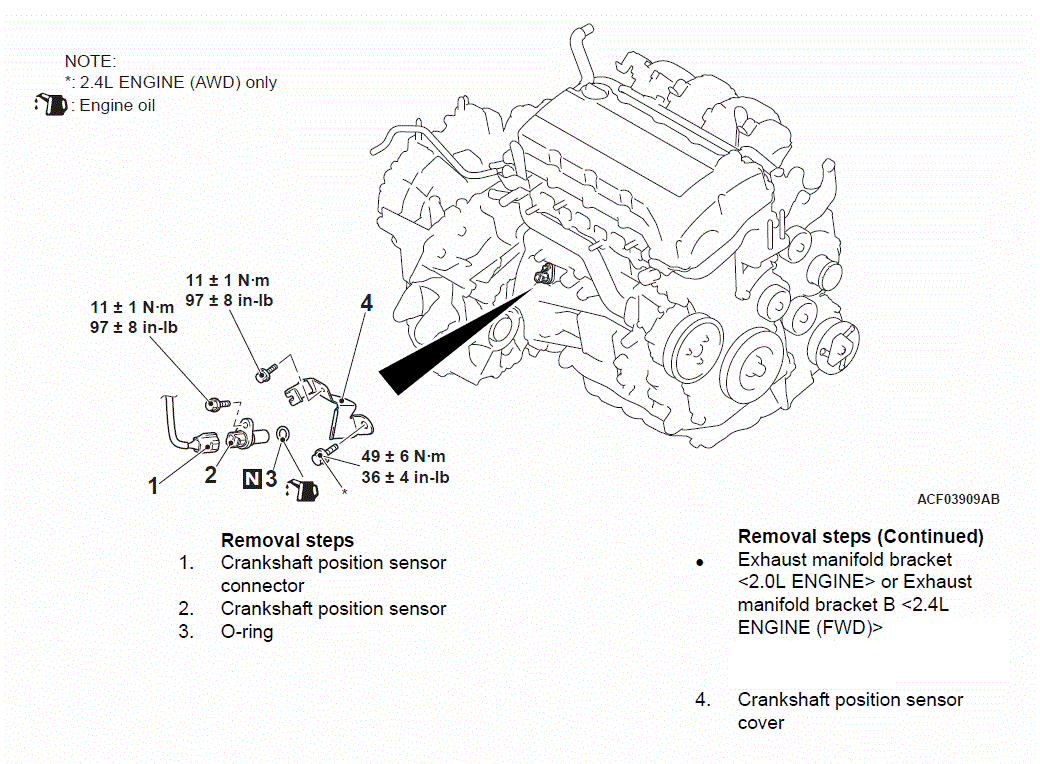

Fig 1: Identifying Crankshaft Position Sensor Related Components With Tightening Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

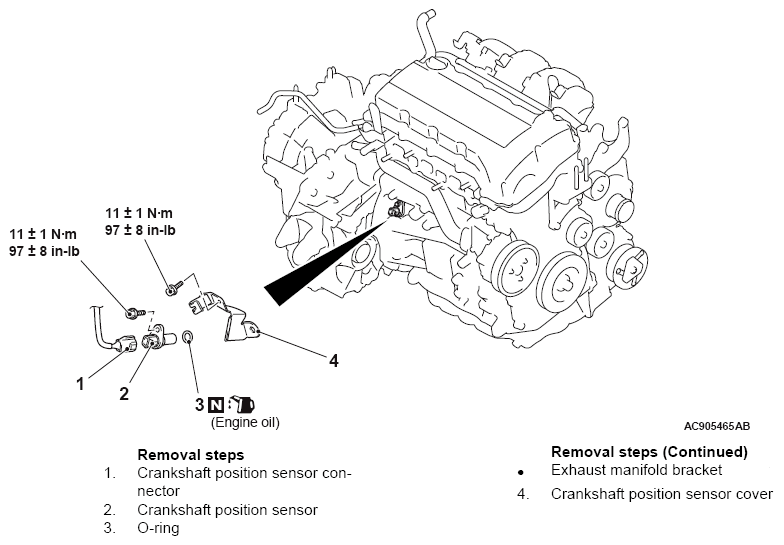

Fig 2: Identifying Crankshaft Position Sensor Related Components With Tightening Torque (2016)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
