FixVault
Home
›
Mitsubishi
›
2017
›
RVR ES, Standard Trans
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Seat Assembly
›
Rear Seat Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

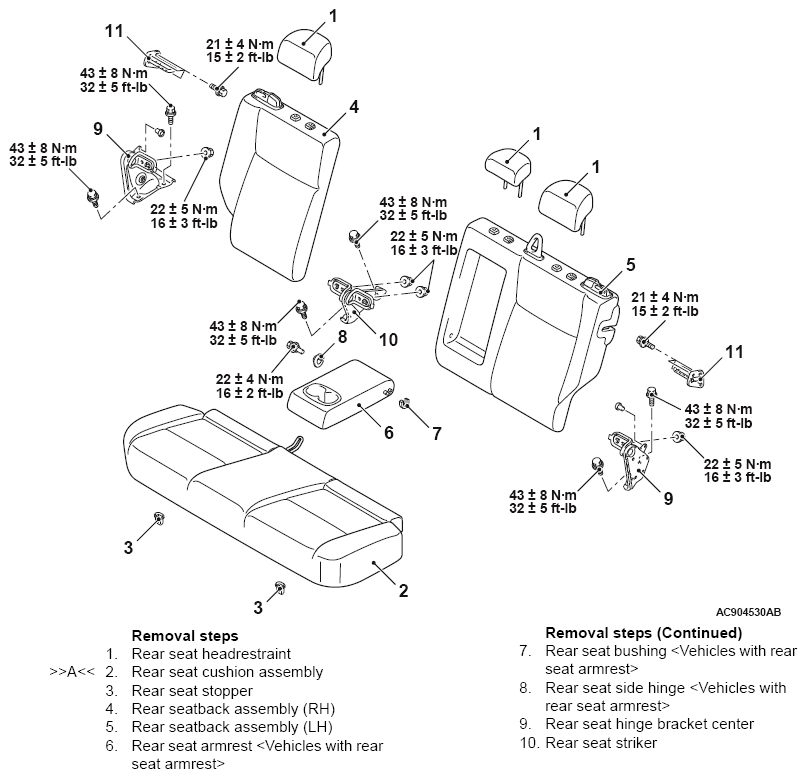

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
